These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.

Features:

1. Socket,TNC,Female,Soldering,for Panel Mounting,50ohm,75ohm,Brass,Nickel;
2. Thread Version of BNC used in Vibration-Intense application with high durability;
3. Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance;
4. High Quality made according to MIL-C-39012 standard

Electrical Characteristics

1. Impedance 50 ohm
2. Frequency Range: 0~11 GHz for 50 ohm
3. VSWR: Straight type 1.3max / R/A type 1.5max
4. Dielectric Withstanding Voltage: 1500 V rms
5. Working Voltage: 500 V rms
6. Center Contact Resistance 3.0m (Milliohms max.)
7. Outer Contact Resistance 2.0 m (Milliohms max.)
8. Insulation Resistance 5 10m (Milliohms min.)

Mechanical Characteristics

1. Coupling:7/16-28 thread
2. Contact Retention: 6 lbs min.
3. Mating Durability: 500 cycles

Environmental Characteristics

1. Environmental Characteristics: -65oC~+145oC
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Package Includes:

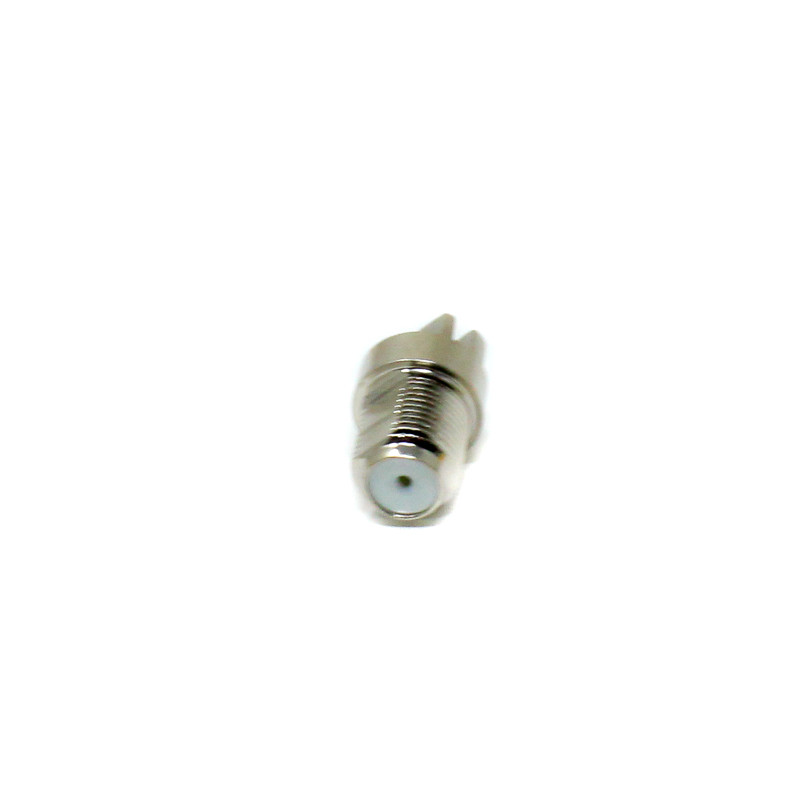

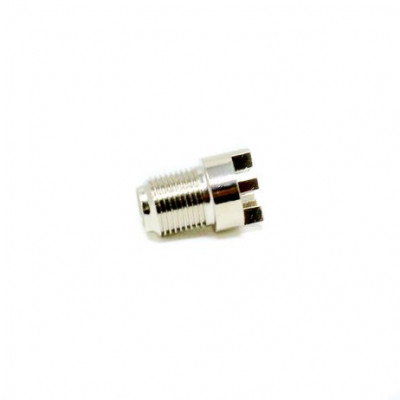

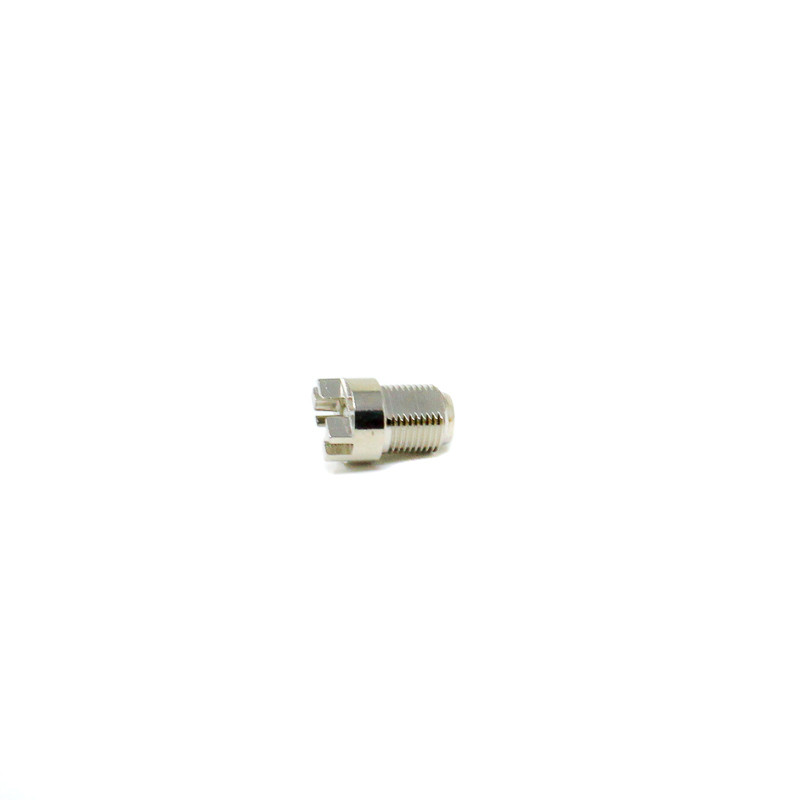

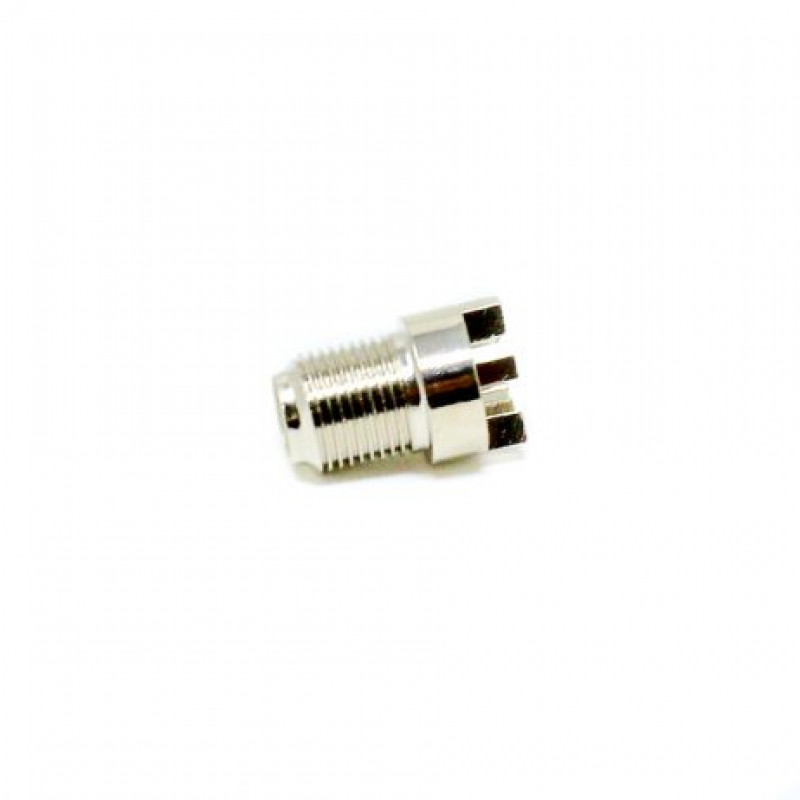

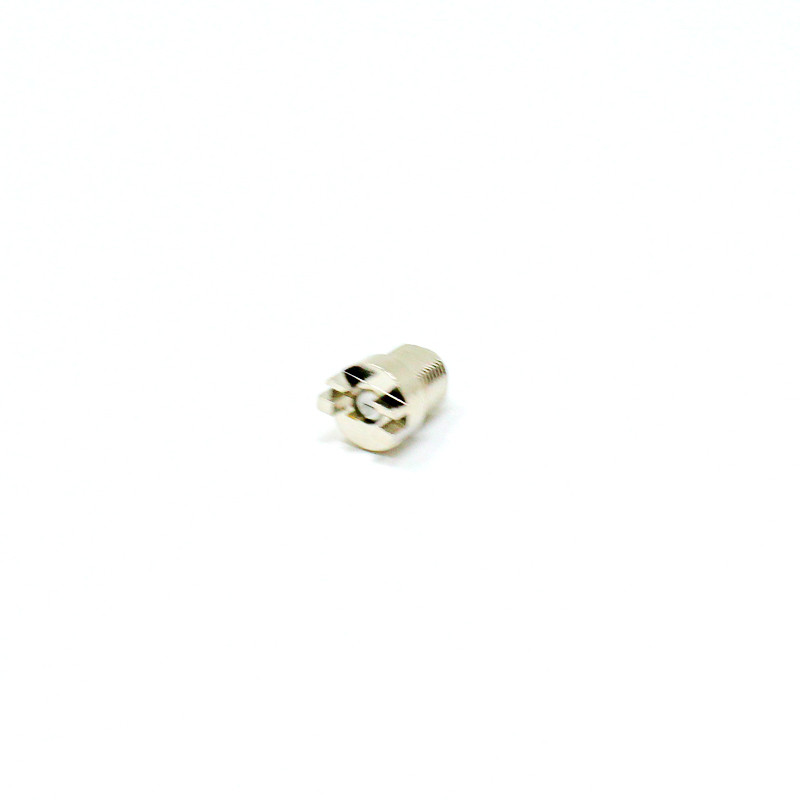

1 x TNC RG59 F Male Compression Connector

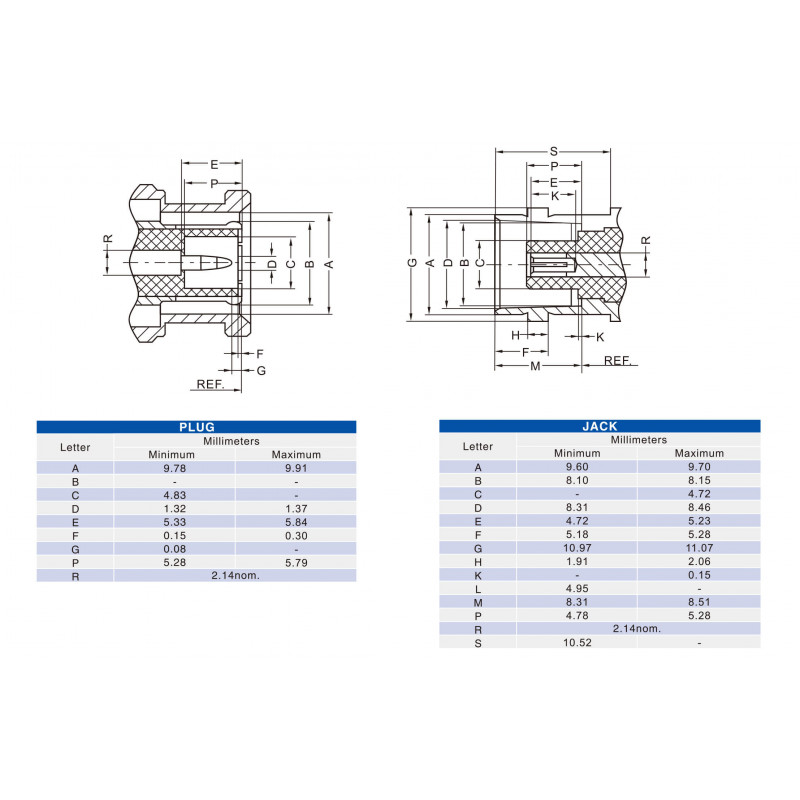

Specifications:
