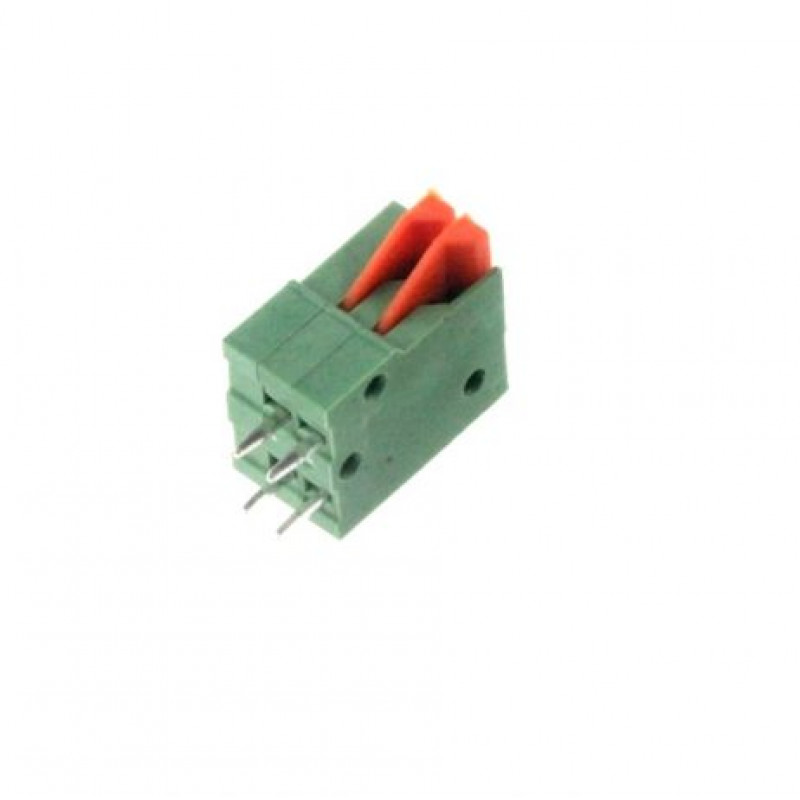

141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block
Schematic:
Features:
Material
Shrapnel: Stainless steel
Pin header: Brass , Tin plated
Housing: PA66 , UL94V-0
Electrical
Rated voltage: 150V
Rated current: 2A
Wire range: 26~18AWG 1.0mm
Contact Resistance: 20 m
Insulation resistance: 500M/DC500V
Withstand voltage: AC1300V / 1 min
Mechanical
Temp. Range: -40 C ~ + 105 C
Soldering: 250 C5 C for 5S
Package Includes:
1 x 141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block
Specifications :-

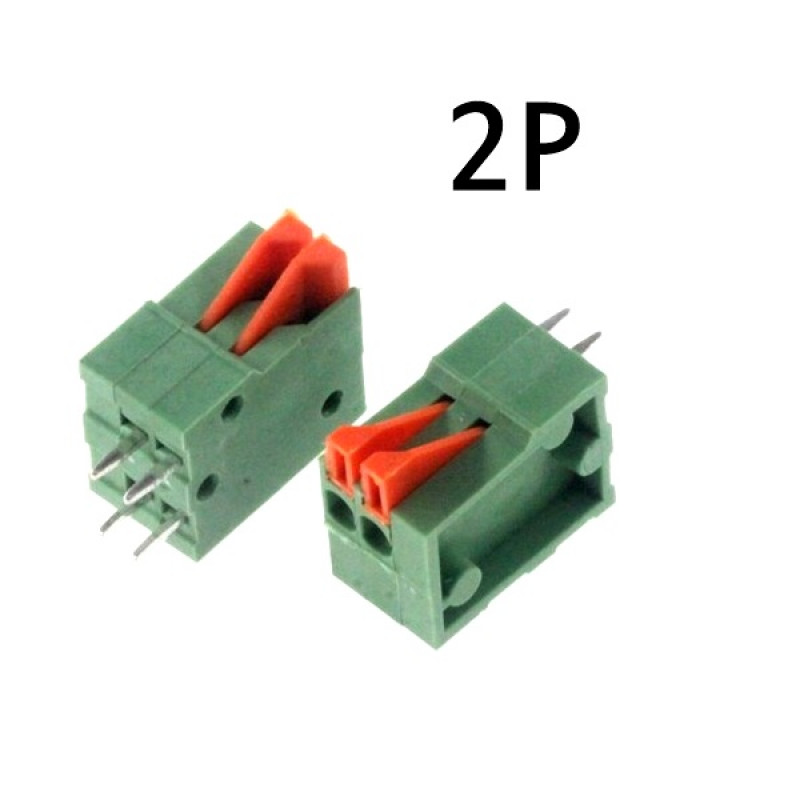

| Model | 2P 141V |
| Pitch | 2.54 mm |
| Wire Connection Method | Push-In |
| Poles | 1 |
| PCB Mounting Method | Through Hole |
| Wire Size | AWG Max. 20 AWG |
| Current Rating | 2 A |
| Voltage Rating | 150 V |
| Orientation | Horizontal |
| Approvals | UL |
| Operating Temperature Range | .-40 C to 105 C |
| Color | Green |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 56.64 (Inclusive of all Taxes) |

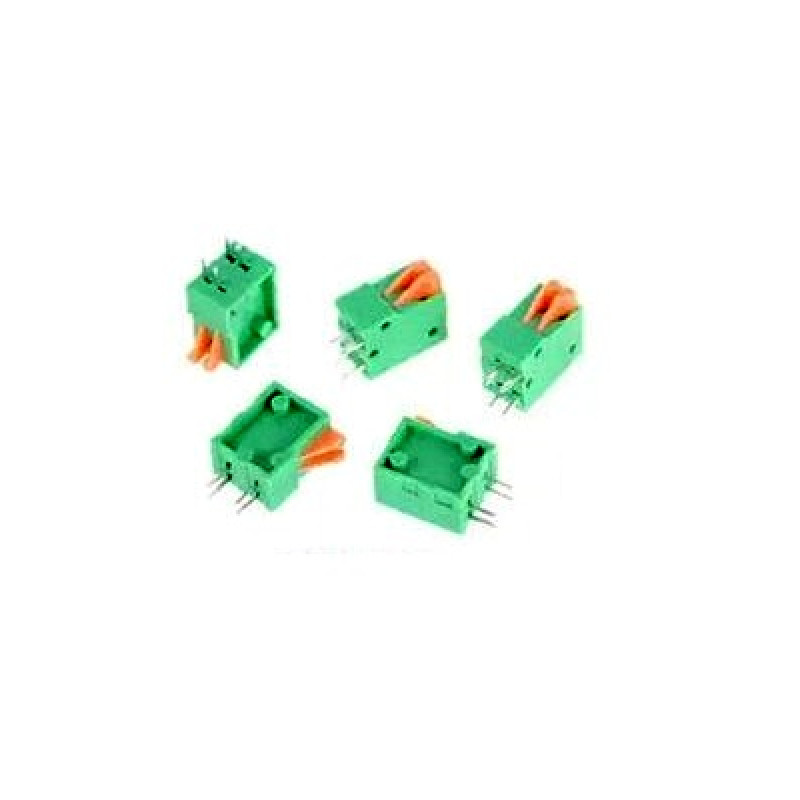

* Product Images are shown for illustrative purposes only and may differ from actual product.
141V 2.54mm Pitch PCB Straight Foot Connectors Terminal Block-1pcs
- Product Code: EC-6305
- Availability: 6
-
Rs.43.00
- (Excluding 18% GST)
