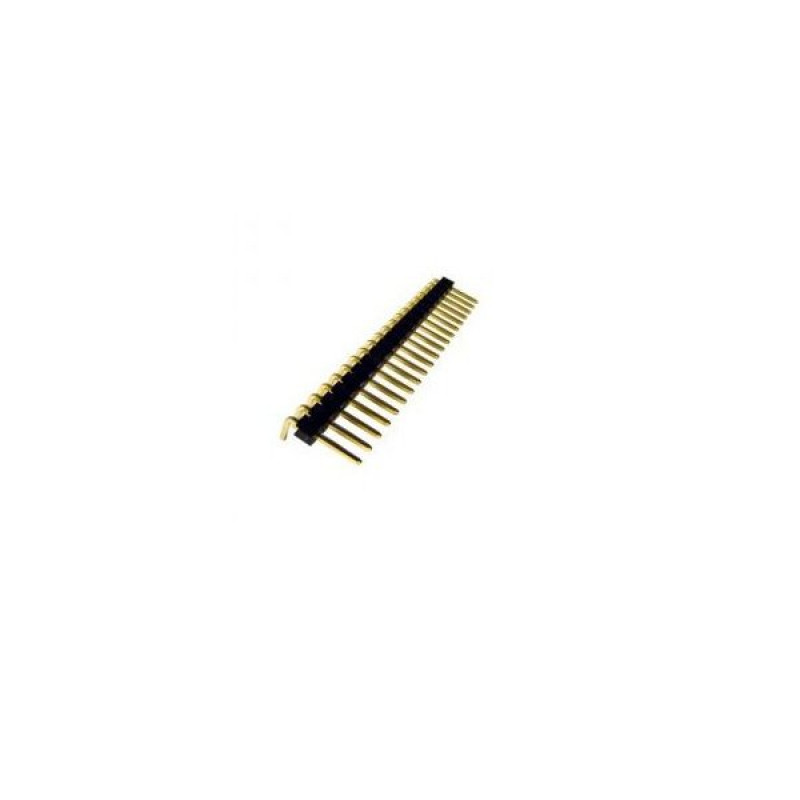

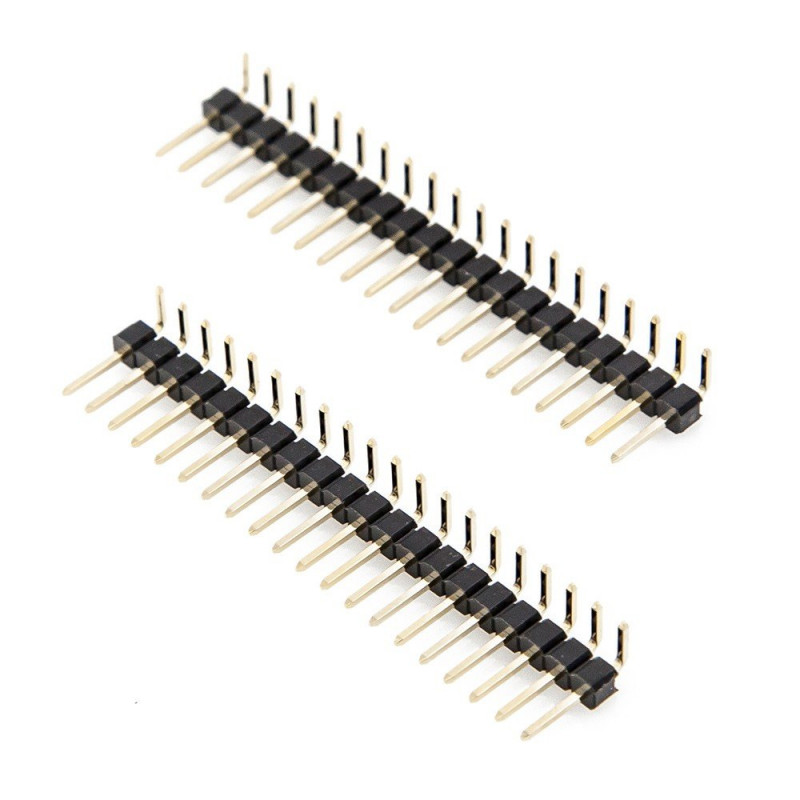

It is a 2.54mm 1x20 Right Angle Male Header Strip.
These connectors are bent at a 90 angle, which is suitable for many applications where the connectors are many times like prototyping.
Also, custom PCBs or general custom headers use these types of connectors.
Package Includes:
1 x 1x20 2.54mm Pitch (Right Angle) Male Header Berg Strip
Specifications :-
Connector | Header Strip |
Gender | Male |
Mounting Type | Through Hole |
Pin Spacing (mm) | 2.54 |
Contact Material | Phosphor Bronze |
Contact Resistance | 20m |
Insulation Material | PBT UL 94V-0 |
Insulation Resistance (M) | 1000 |
Length (mm) | 51 |
Width (mm) | 2.4 |
Height (mm) | 8 |
Weight (gm) | 1 |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
1x20 2.54mm Pitch (Right Angle) Male Header Berg Strip
- Product Code: EC-6409
- Availability: 144
-
Rs.15.00
- (Excluding 18% GST)
