These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Appliance:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Features:

  1. SMA Connector,50 Ohm,Female,Plate Edge Mount,Straight/180,Nickel Plating
  2. Excellent electrical performance up to 18GHz with low reflection;
  3. Thread type coupling mechanism ensure small loss and high security in compact design;


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range:0~6 GHz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
  5. 750 V rms min. for RG316, RG402
  6. 500v rms min. for RG178
  7. Working Voltage:500 V rms max. for RG142, RG405
  8. 375 V rms max. for RG316, RG402
  9. 170 V rms max. for RG178
  10. Center Contact Resistance 6.0 m (Milliohms max.)
  11. Outer Contact Resistance 2.0 m (Milliohms max.)
  12. Insulation Resistance 5 x 10 m (Megohms min.)


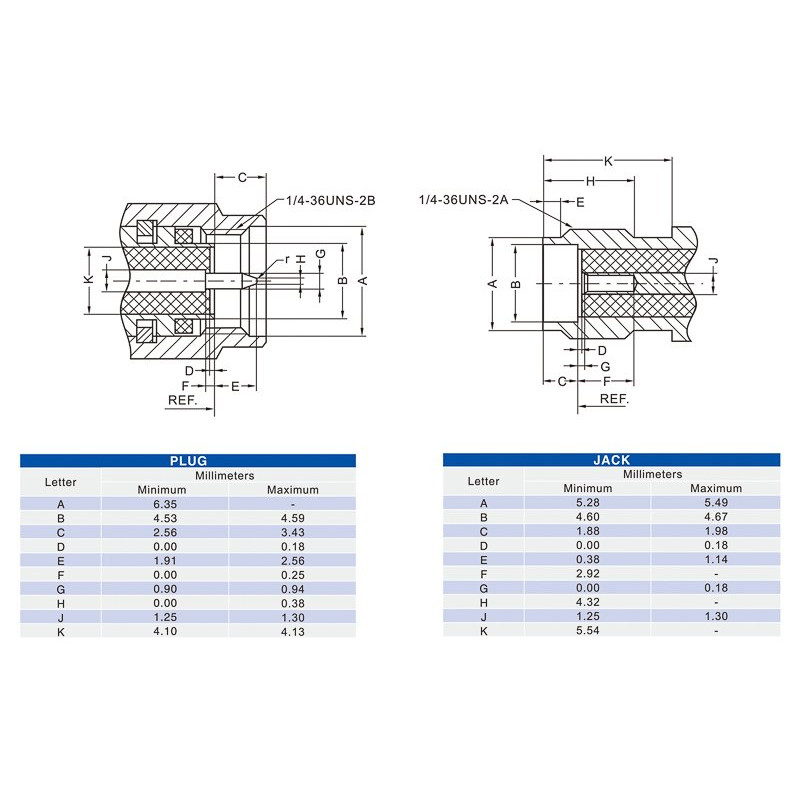

Mechanical Characteristics

  1. Coupling: 1/4-36 thread
  2. Contact Retention: 15 in-lbs min.
  3. Coupling nut torque: 30 in-lbs. min.
  4. Durability(mating) 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Temperature Range: -55C ~ +155C
  2. Vibration: MIL-STD-202 Meth.204
  3. Corrosion resistance: MIL-STD-202 Meth. 101


Package Includes:

1 x SMA Female Bulkhead Connector 180 Degree Plate Edge Mount PCB Mount


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Female

Mounting Type

PCB Mount / Panel Mount

Termination Style

Solder Type

Mounting Feature

Bulkhead / Edge Mount

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Silver Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 155.76 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

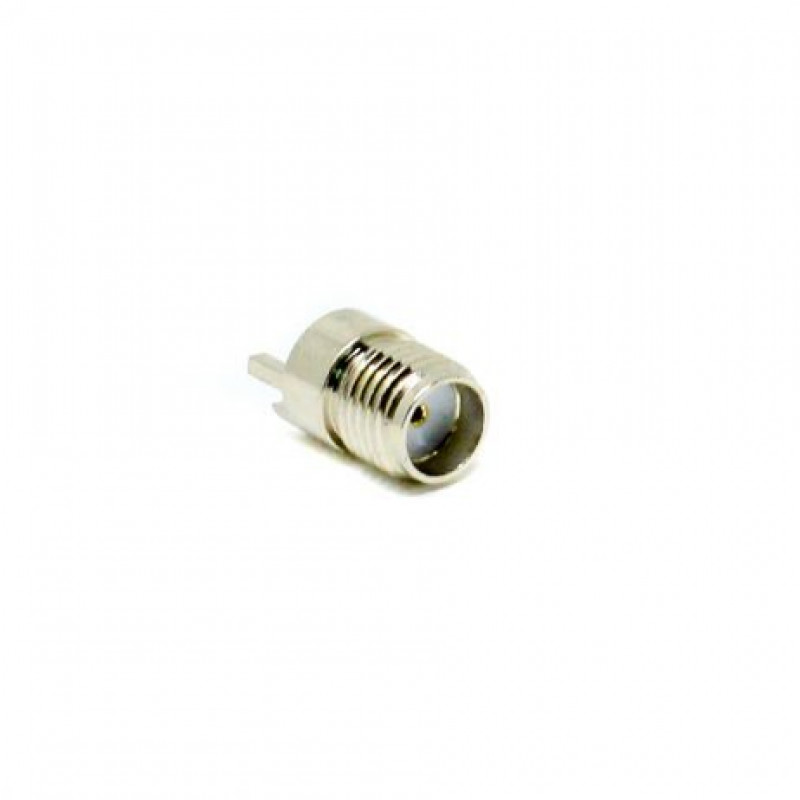

SMA Female Bulkhead Connector 180 Degree Plate Edge Mount PCB Mount

  • Product Code: EC-5744
  • Availability: 6
  • Rs.148.00
  • (Excluding 18% GST)
