Used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.DIAC is a semiconductor device that has three layers and two junctions. The word DIAC consists of two parts, DI and AC. The DI stands for the diode (or two. Like Di, Tri, Quad, Penta, etc.) and AC stands for Alternating Current. DIAC is the acronym of the diode for alternating current. The DIAC is a combination of two diodes in parallel, one in forward bias and the other one is in reverse bias condition with respect to both sides. DIAC is a specially constructed diode, which allows current to pass in both directions when certain conditions are met.
Specifications:-
- Breakover Voltage, VBO : 32V
- Breakover Current, IBO : 100µA
- Power : 150mW
- Output Voltage : 5V
- Low breakover current
- Breakover voltage symmetry : 3V
- Max RMS on-state current: 2 A
Package Includes:-

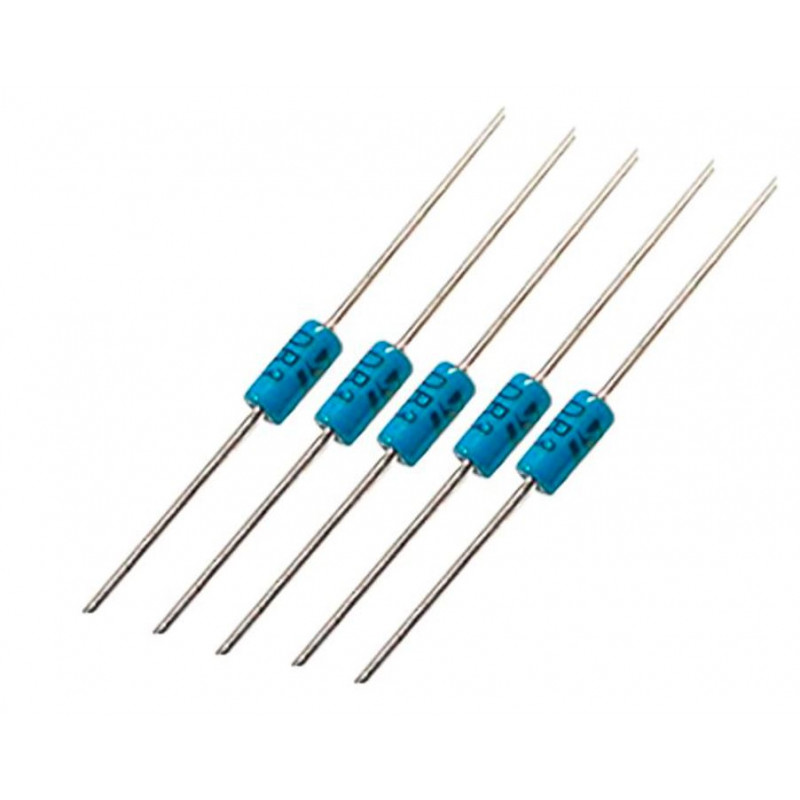

5 x DB3 DIAC - Trigger Mode
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DB3 DIAC - Trigger Mode - 5 Pieces Pack
- Product Code: EC-1706
- Availability: 553
-
Rs.15.00
- (Excluding 18% GST)
