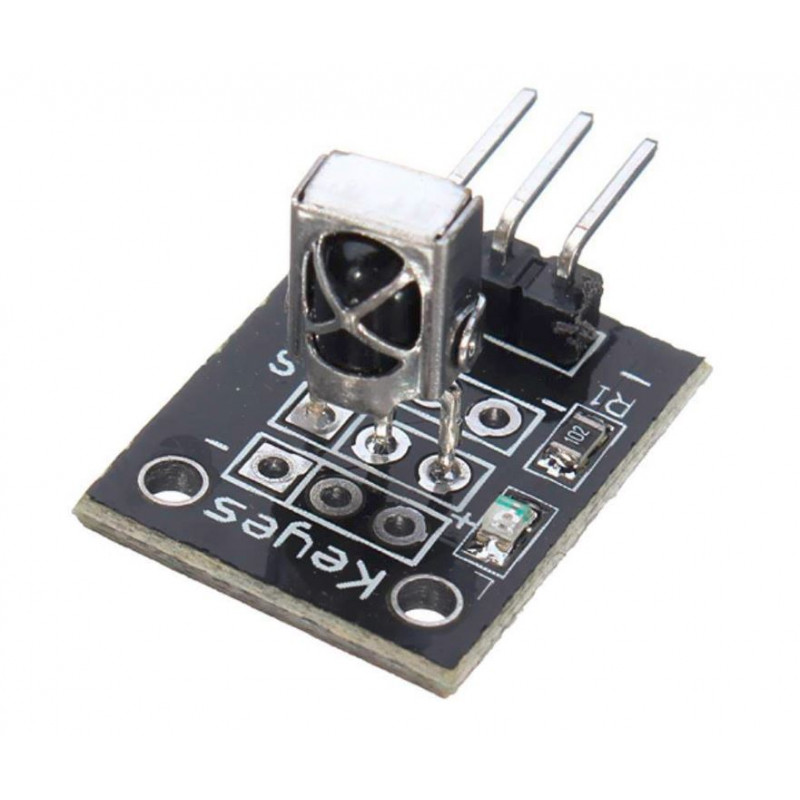

The KY-022 module is ideally suited to infrared light detection within the range of 700nm -1mm, typically seen in project robots and remote control receivers. The data pin outputs HIGH when the sensor is triggered. Working at a low 3.3 – 5V input the module will output HIGH values on detecting a signal and LOW values while not detecting. A data LED is mounted onto the board that lights when the sensor is triggered.
Features and Specifications:-
- Voltage : 3.3V to 5V
- Characteristics : 700nm – 1mm
- Chipset : TSOP1838 37.9kHz
- Daylight rejection : up to 500LUX
- Receiving distance : up to 18 m
Package Includes:-
1 x TSOP Sensor Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 188.8 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TSOP Sensor Module
- Product Code: EC-1156
- Availability: 274
-
Rs.39.00
- (Excluding 18% GST)
