If you are wandering to make a device that is automatically used to increase room humidity levels by adding water vapor to the air. then this sensor is needed for you. This sensor works by transposing high-frequency sound waves into mechanical energy that is transferred into a liquid, creating standing waves. you can buy this sensor From Robu.in at a reasonable price.

Buy this powerful DC 24V Ultrasonic Humidifier device suitable for atomization with a plate diameter of 10 mm. It is mostly in demand for fish pot and decoration purposes in households. Its a simple plug-and-play module in which you just have to deep down the module in water and Supply 24 volt DC supply directly from the battery or power supply Adapter and it will start working.

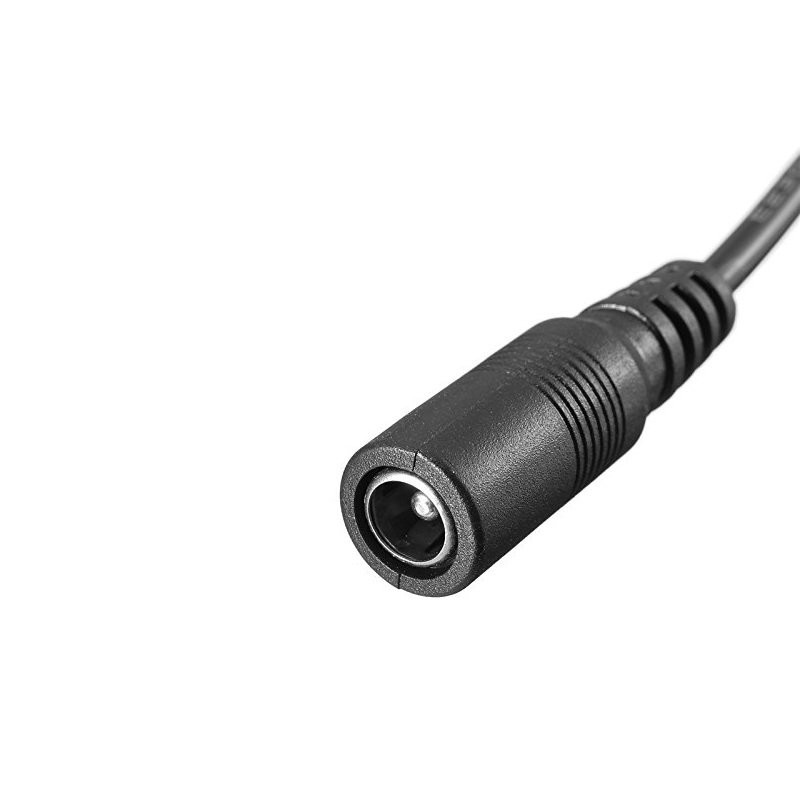

The fully waterproof module has a 5mm DC female jack to connect the input power source with a 1-meter long cable.


Instruction to use:

  1. Deep the module in the water keeping 4 to 5 cm water level above the device
  2. Connect the power supply of 24V DC 1AMP and enjoy the fog.
  3. Use power supply at least with 1AMP output for best performance
  4. Do not deep it in water more than 5cm for maximum fog output.


How does it work?

Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. Just provide the power supply it will turn into a mini ultrasonic atomizer.


Features:

  1. Plug and Play Device
  2. Fully waterproof and Shockproof
  3. 1-meter long cable provides ease for connections
  4. Universal 5 mm DC Female jack
  5. Low noise operation.
  6. Small fog particles.
  7. Long operation life.
  8. High stability.
  9. High Conversion Efficiency.
  10. Low Impedance Stable Waveform.
  11. Low Dielectric Loss.
  12. Strong Corrosion Resistance.


Package Includes:

1 x DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer



Specifications :-

Operating Voltage

24V DC

Operating Current

0.8 Amp

Working Temperature

1-50 Max (Water only)

Water Consumption

80ml/h

Mist Diameter

Approx. 4.5cm / 1.8inch

Mist Height

Approx. 4cm / 1.6inch

Connector Type

5 mm DC female (for Input)

Cable length

1 Meter

Colour

Black

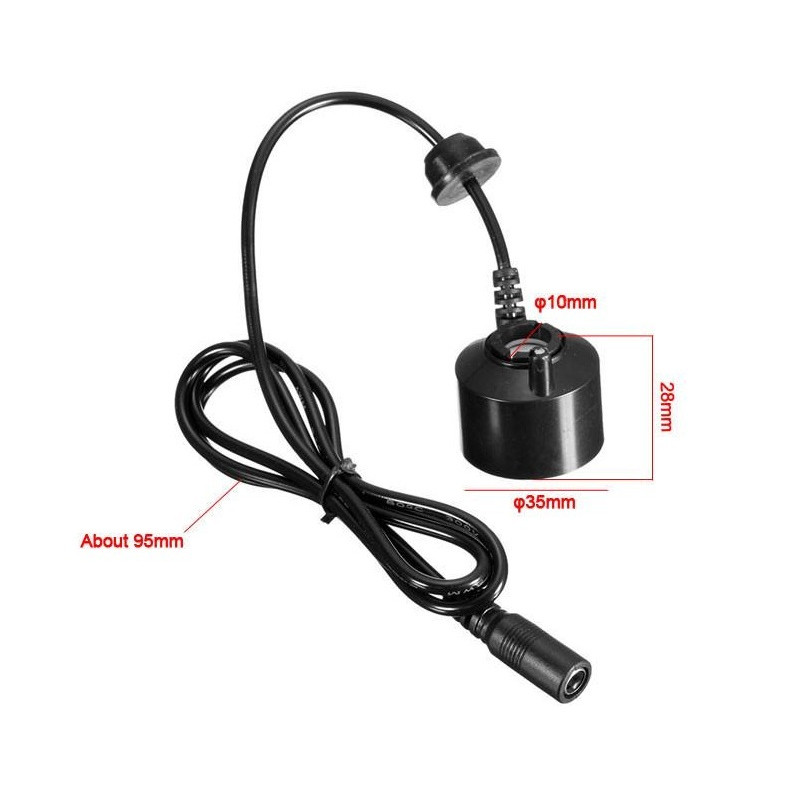

Width (mm)

35

Height (mm)

28

Weight (gm)

58



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 414.18 (Inclusive of all Taxes)
