Features of the MB1001, ParkSonar-EZ-72, include one-inch resolution, both proximity and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.

TheParkSonarEZline is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle, or other detectable target, enters the detection zone. The target is released after leaving the ParkSonar-EZs detection zone.

The MB1001 has a detection zone of ~6 feet. The MB1001 will allow for 14+ simultaneous sensors depending on sensor mounting and environment.

Applications:

1. Vehicle Detection Sensor
2. Parked car detection
3. Proximity zone detection
4. Sheltered drive thrus
5. Non-condensing environments only
6. Designed for protected indoor environments
7. Other weather-resistant models available2

Features:

1. Automatic multi-sensor operation
2. RoHS Compliant
3. Small, lightweight module
4. Designed for easy integration into your project or product
5. Mounting holes provided on the circuit board (or can be grommet mounted)
6. Very low power proximity sensor, excellent for multiple sensor or battery-based systems
7. Continuously gives an output that frees up user processors
8. Users can choose either of the two sensor outputs
9. Runs automatically or can be triggered externally
10. Fast measurement cycle

Packages Includes:

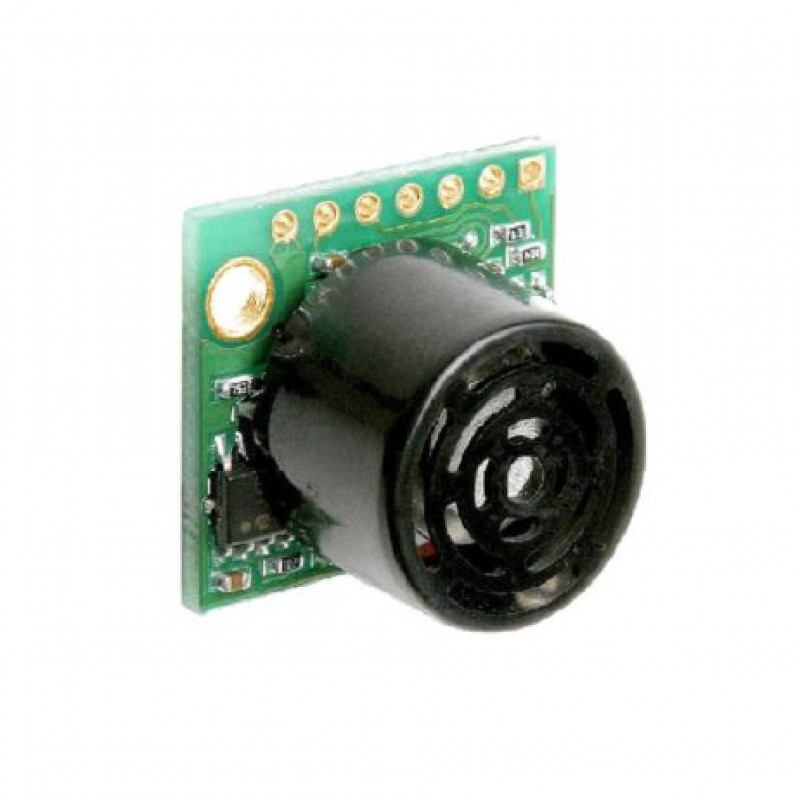

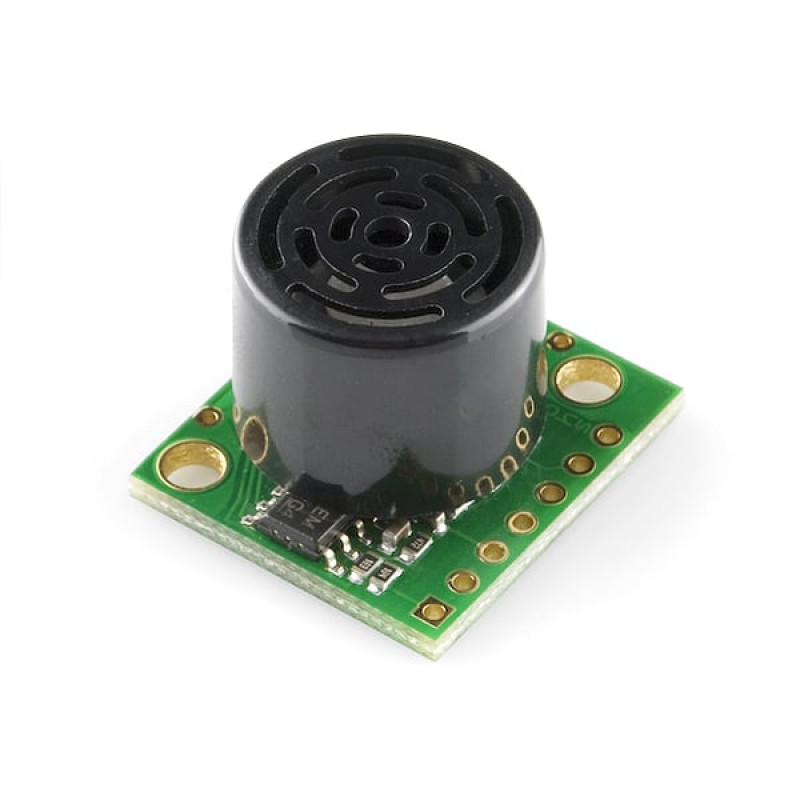

1 x MaxBotix MB1001 Ultrasonic Sensor
