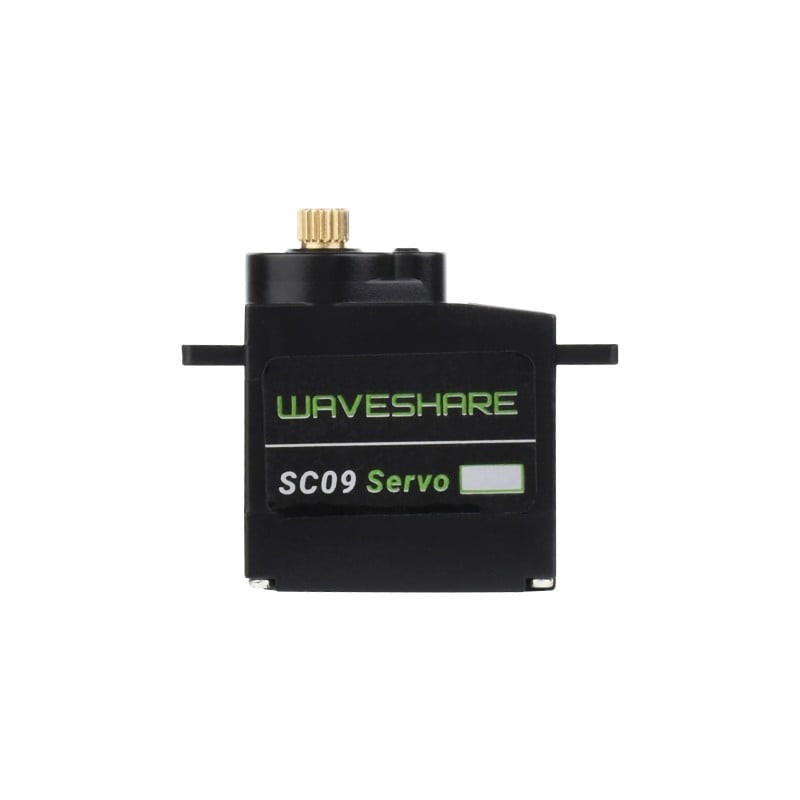

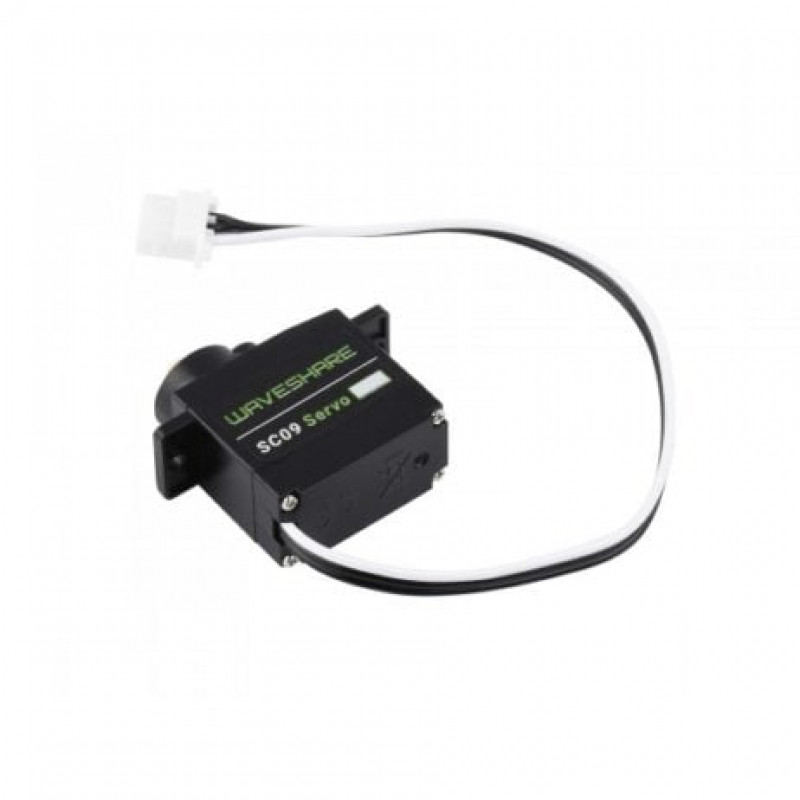

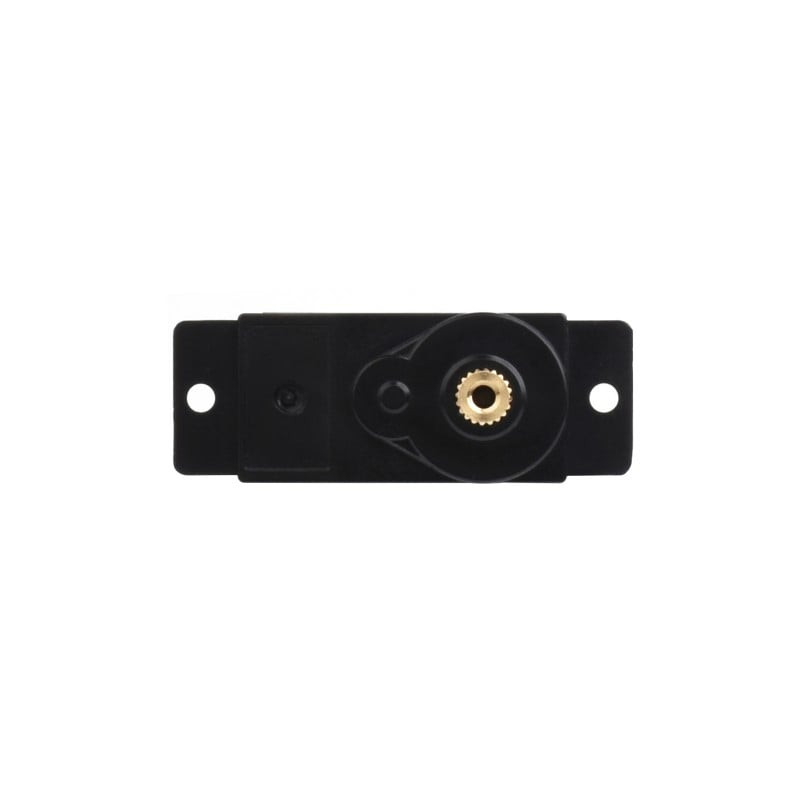

SC09 Servo is a mini and compact dual-shaft serial bus servo, which can control within a range of 300 and can be programmed to switch to continuous rotation motor/stepper motor mode. There is an interface on the servo, which can be used in series to control 253 bus servos at the same time and each servo can get its current angle, load, voltage, mode, and other information. It is suitable for the robotic arm, hexapod robot, humanoid robot, wheeled robot, and other robotic projects that require feedback on servo angle and load.
Feature :
- Can be used in series to control up to 253 servos simultaneously (assuming an adequate power supply) and obtain feedback from each servo.
- Wide voltage input 4.8-8.4V.
- Locked-rotor torque up to2.3kg.cm@6V.
- High precision, angle control accuracy up to 300/1024.
- Programmable operating mode: servo mode angle control/motor mode with continuous rotation.

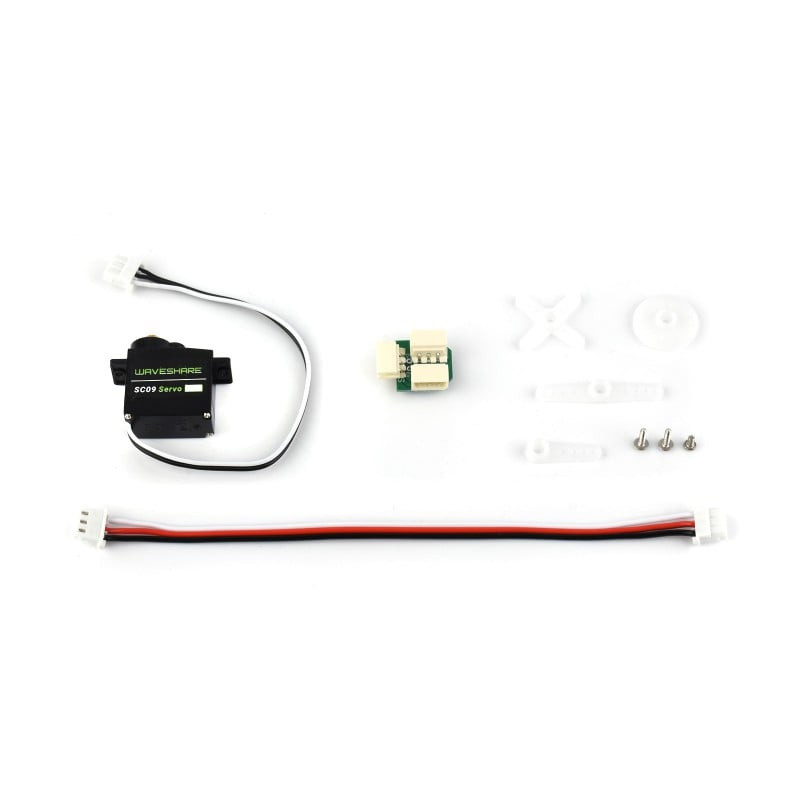

Package Includes :
1 x Waveshare 2.3kg Dual-axis Serial Bus Servo, Two-way Feedback, Servo/Motor Mode Switchable, Compact Size, 300 Rotation Angle
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1233.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 2.3kg Dual-axis Serial Bus Servo, Two-way Feedback, Servo/Motor Mode Switchable, Compact Size, 300° Rotation Angle
- Product Code: EC-17880
- Availability: 32
-
Rs.1045.00
- (Excluding 18% GST)
