8inch Capacitive Touch Display For Raspberry Pi, 800480, DSI Interface
- The anti-interference design of LCD FFC line makes it more stable for industrial use.
- The VCOM voltage adjustment resistor can adjust the VCOM voltage to achieve the best display effect.
- The thimble can be used for power supply, reducing tedious wiring.
- Two types of 5V power output interfaces are convenient for users to connect cooling fans or supply power to other low-power devices.
- The camera hole is reserved on the touch panel, which is convenient for users to integrate an external camera.
- The large cover design makes it easy to design the case and is easy to be embedded in various equipment.
- The chip nuts support and fix the Raspberry Pi mainboard to the back of the LCD, and the structure is more compact.
Features:
- 8inch capacitive touch screen. 800480 hardware resolution
- Capacitive touch panel, support 5-point touch
- Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter cable is required for CM3/3+/4a:DSI-Cable-15cm
- Directly drive LCD through DSI interface of Raspberry Pi, refresh rate up to 60Hz
- Working with Raspberry Pi, supports Raspberry Pi OS/Ubuntu/Kali and WIN 10 IoT, driver-free.
- Support backlight adjusts by software
Package Includes:
- 8inch DSI LCD x1
- 2PIN wire 10cm x1
- Screws pack x1
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 7055.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

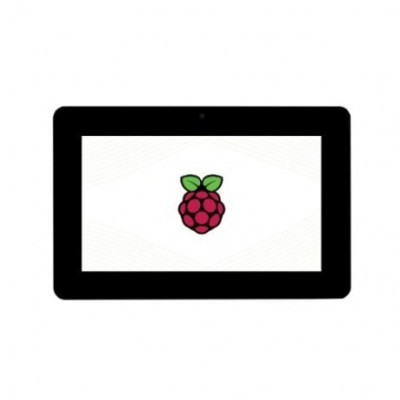

Waveshare 8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800x480
- Product Code: EC-17708
- Availability: 27
-
Rs.5979.00
- (Excluding 18% GST)
