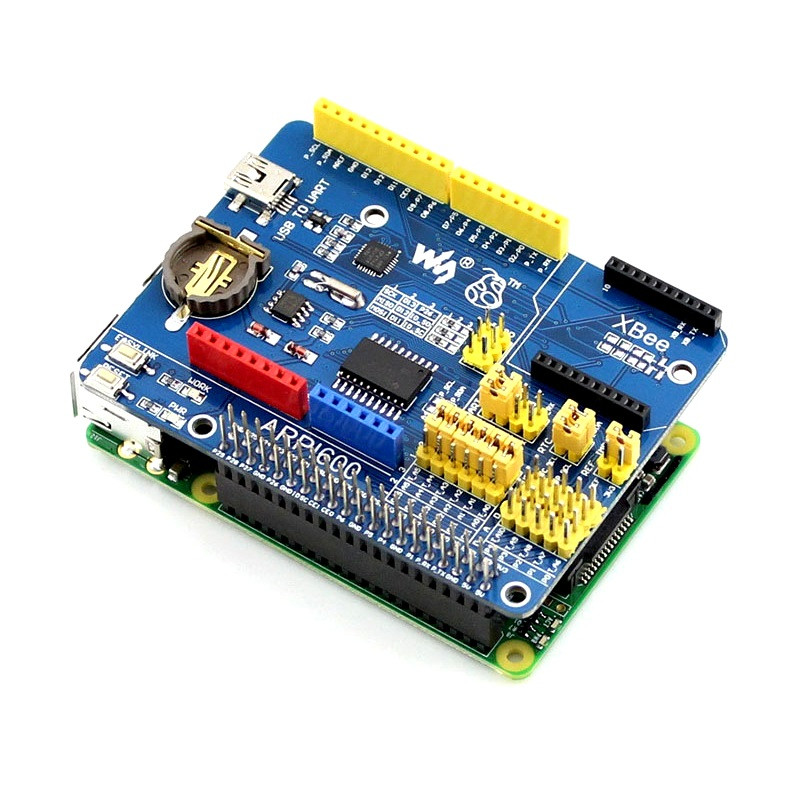

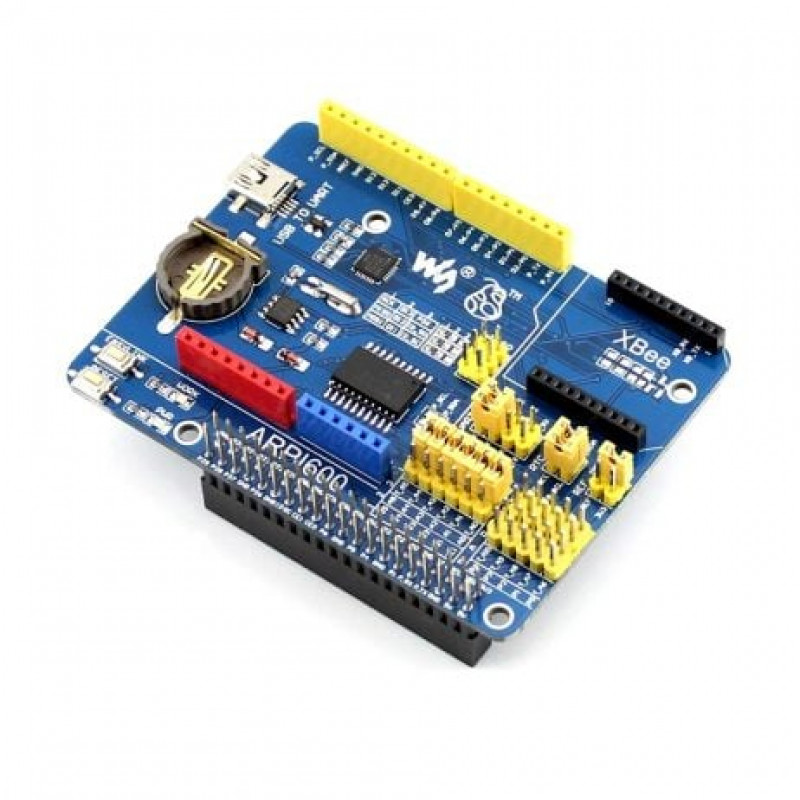

ARPI600 is a Raspberry Pi Expansion Board, it simply adapts the Raspberry Pi GPIO interface to Arduino pinouts making it possible to use your Raspberry Pi with a precious number of Arduino shields and hardware/software resources. The ARPI600 also supports XBee modules, adds up wireless features without having to hassle up with wires.

Whats onboard ARPI600:

1. Arduino connector:for connecting Arduino shields
2. ICSP interface :Arduino ICSP
3. XBee connector:for connecting XBee communication modules
4. Sensor interface:for connecting sensors
5. Raspberry Pi connector:for connecting Raspberry Pi
6. USB TO UART
7. TLC1543:AD converter
8. PCF8563 :RTC
9. CP2102
10. 32.768KHz crystal:for RTC
11. Power indicator
12. XBee state LED
13. XBee and Arduino interface RESET button
14. XBee EasyLink button
15. RTC battery holder: for the CR1220 button battery
16. TLC1543 reference voltage configuration jumper
17. RTC jumper
18. UART jumper
19. Arduino AD selection jumper

20. Arduino I2C selection jumper
21. Arduino SPI selection jumper

Features:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
2. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields.
3. XBee connector for connecting various XBee modules.
4. Sensor interface for connecting various sensors.
5. USB TO UART onboard for serial port debugging, also can be configured as an XBee USB adapter.
6. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors).
7. Onboard RTC.

Package Includes:

1 x ARPI600

1 x USB type A plug to mini-B plug cable

1 x RPi Screws Set
