The MLX90614 is an Infra-Red thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASSP are integrated into the same TO-39 can.
Thanks to its low noise amplifier, 17-bit ADC, and powerful DSP unit, high accuracy, and resolution of the thermometer is achieved.
The thermometer comes factory calibrated with a digital PWM and SMBus (System Management Bus) output. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20120C, with an output resolution of 0.14C.

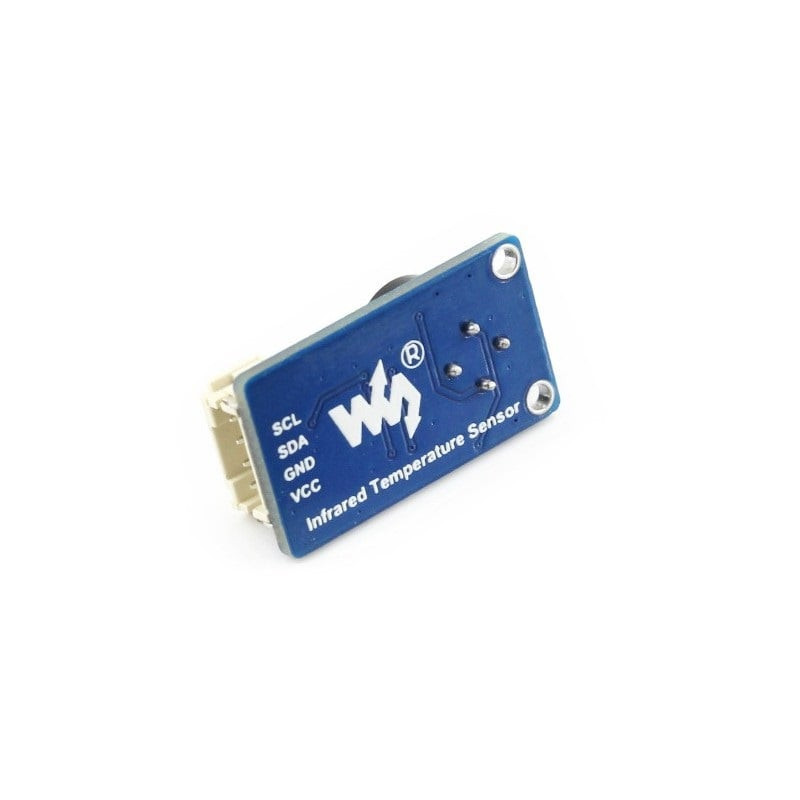

In the case of working with an MCU:
VCC 3.3V ~ 5V
GND GND
SDA MCU.I2C data line
SCL MCU.I2C clock line
Application:
- High-precision contact-less temperature measurement
- Industrial temperature control
- Household appliances temperature control
Features:
- Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target.
- Also measures the average temperature over an area.
- Contact-less, high precision, high resolution, fast response.
- Calibrated before delivery, with gradient temperature compensation.
- Works with 3.3V/5V MCU system directly, thanks to the built-in level translation.
Package Includes:

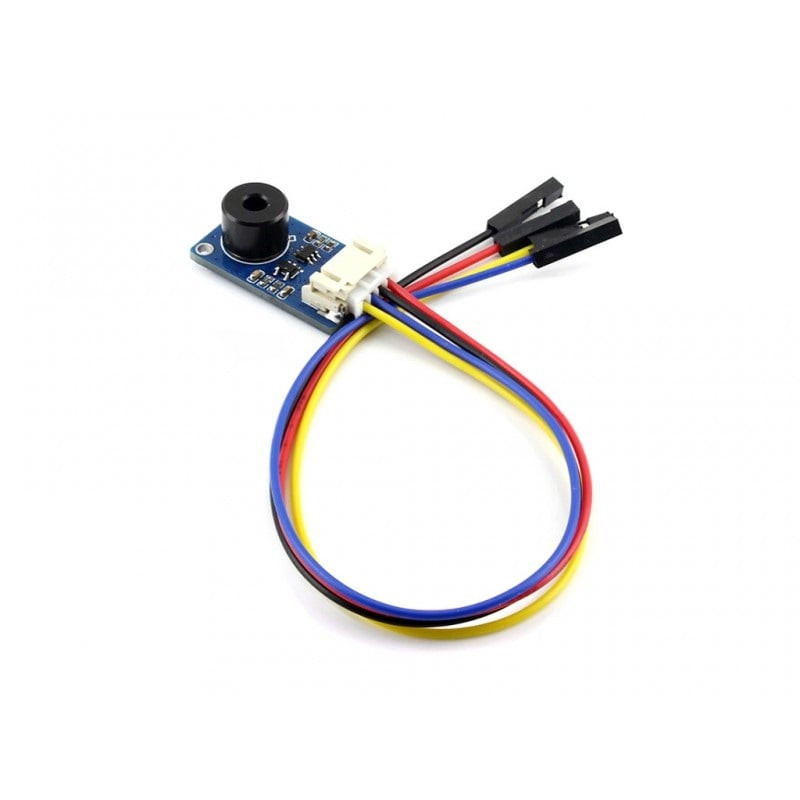

1 x Infrared Temperature Sensor

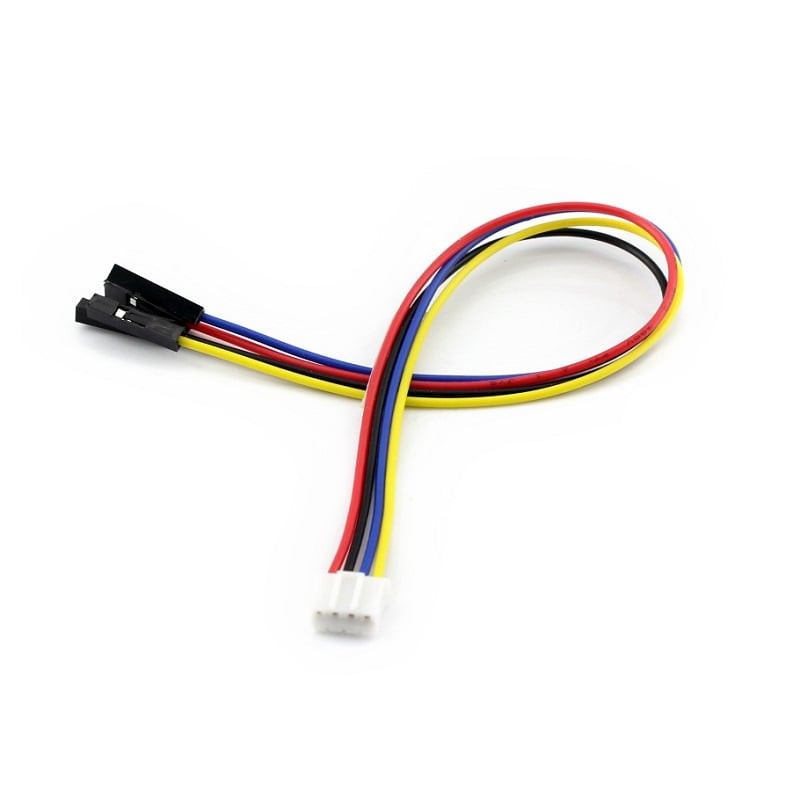

1 x PH2.0 4PIN wire
Specifications :-
| Recommended Power Supply | 3.3 ~ 5.3V |
| Measuring range (area) | 40C ~ 85 C |
| Measuring range (object) | -70C ~ 380 C |
| Resolution | 0.02C |
| Precision | 0.5C ( 0~50C) |
| Field of view (FOV) | 35 |
| Length (mm) | 28 |
| Width (mm) | 16 |
| Height (mm) | 3 |
| Mounting Holes Diameter (mm) | M2 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 3 2 1 cm |
Attachments :
Download| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

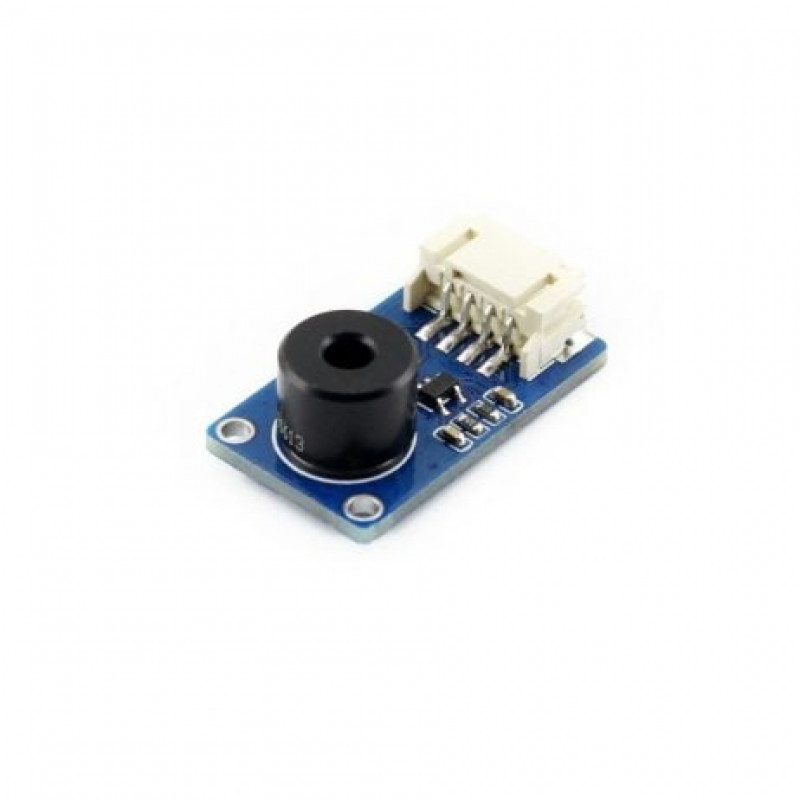

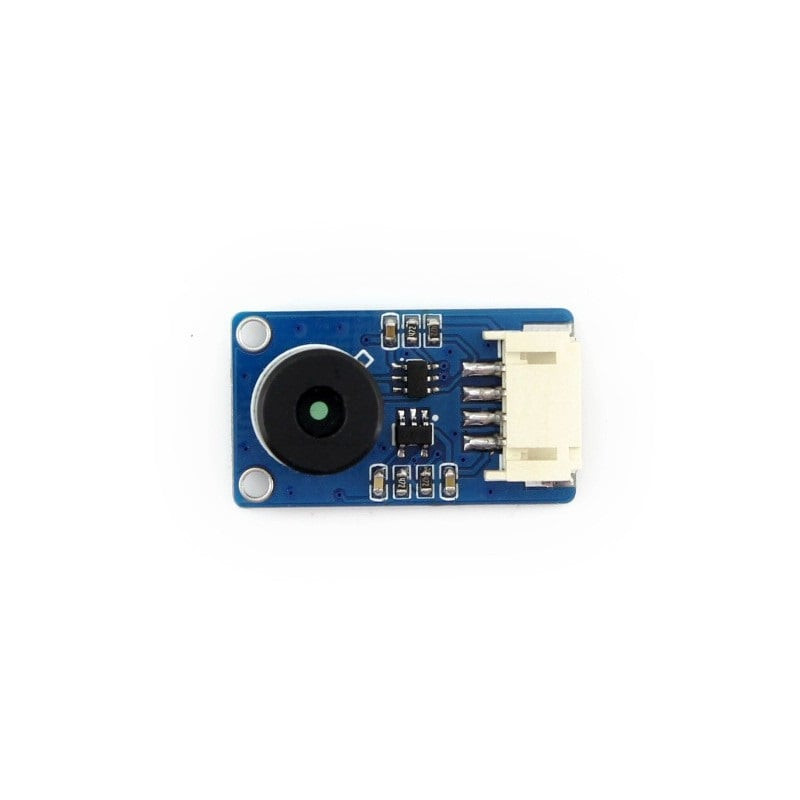

Waveshare Contact-less Infrared Temperature Sensor
- Product Code: EC-7537
- Availability: 17
-
Rs.2965.00
- (Excluding 18% GST)
