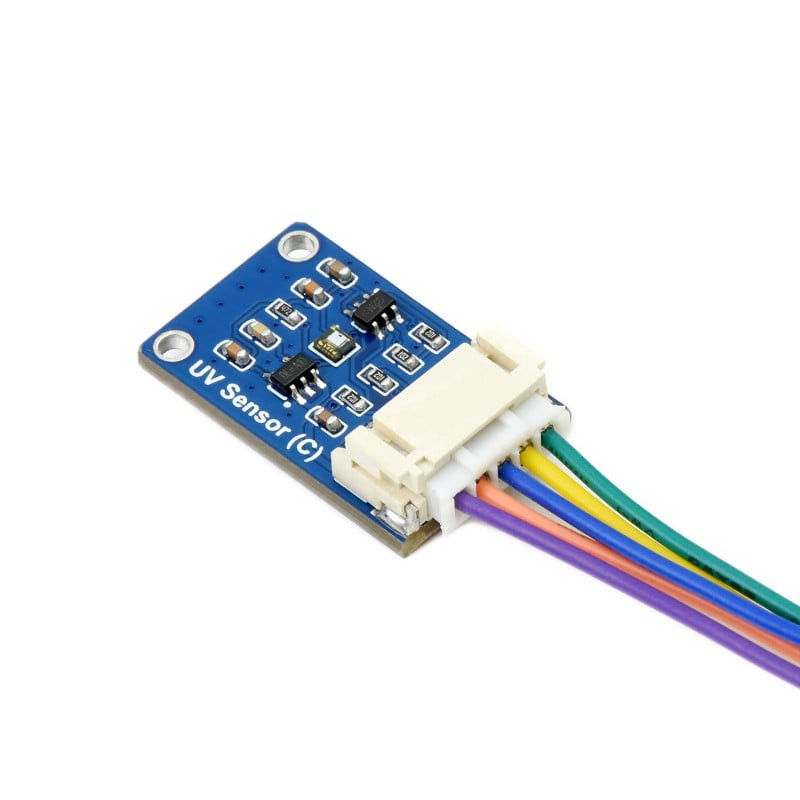

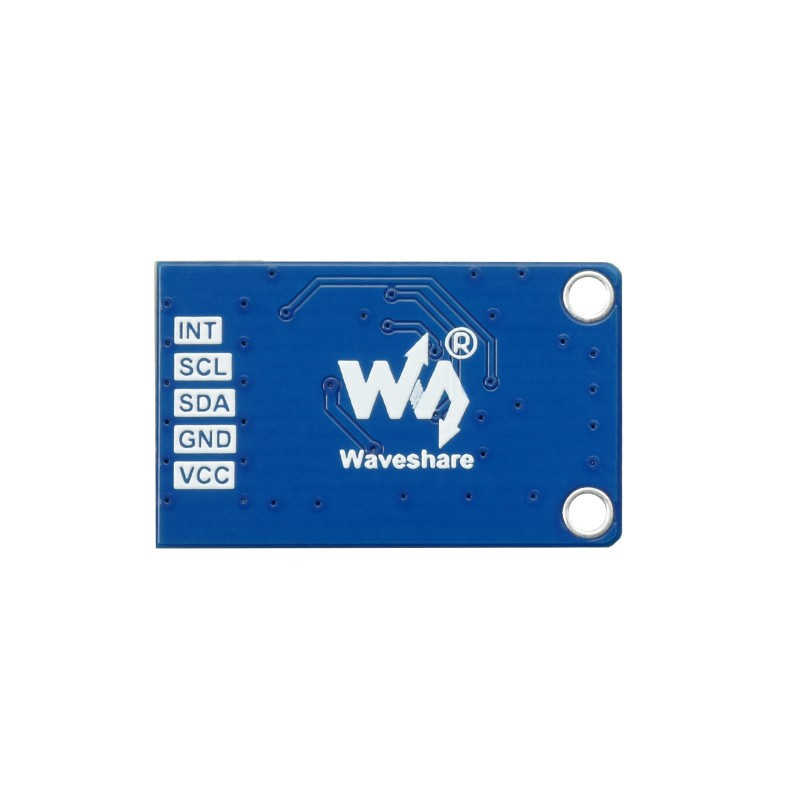

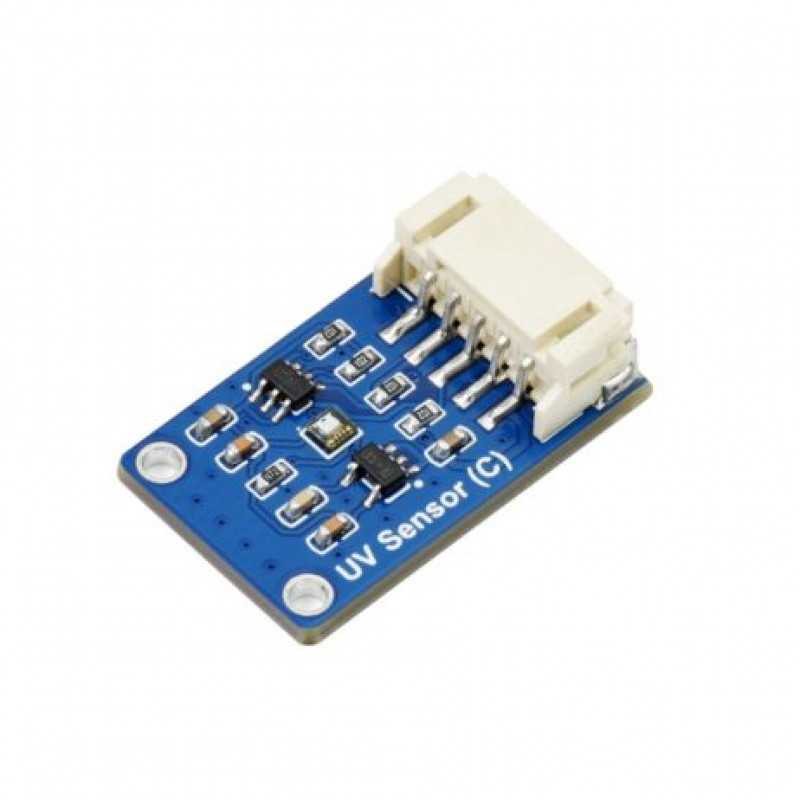

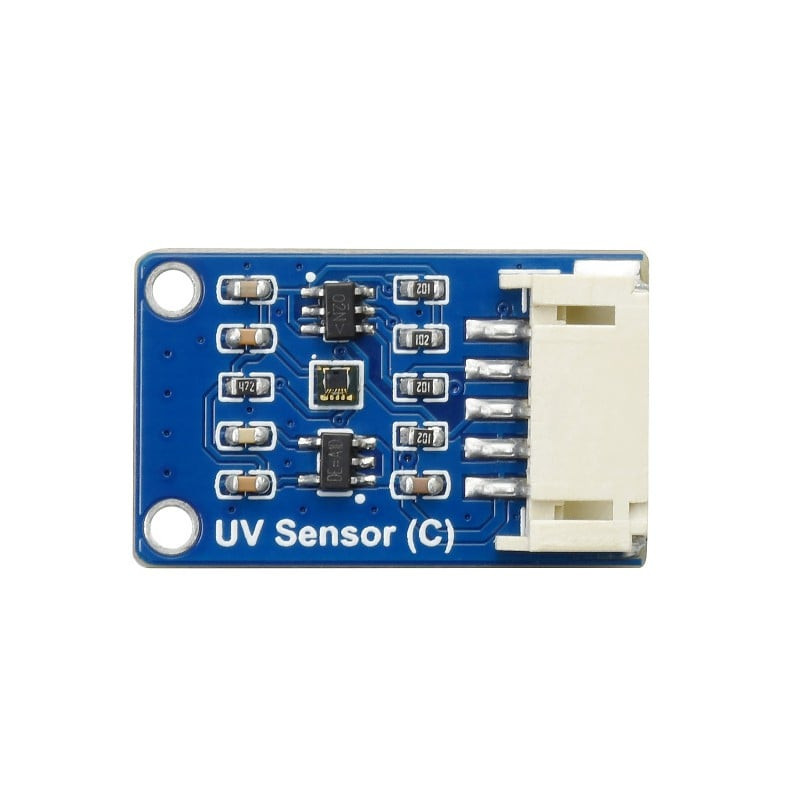

V Sensor (C) is an I2C digital UV sensor expansion board equipped with LTR390-UV-01, which can be used to measure UV and human visible light and can output light intensity data. UV Sensor (C) has the characteristics of sensitive sensing, fast response and small size. Its core sensor LTR390-UV-01 is integrated on a 27 20mm expansion board, which can be easily integrated into the device.
Features:
- Using LTR390-UV-01, can measure ultraviolet and visible light of human eye
- Built-in ADC, can directly output light intensity through I2C interface, not easy to be disturbed by noise
- With interrupt output and programmable upper and lower thresholds
- On-board level conversion circuit, compatible with 3.3V/5V working level
- Provide complete supporting information manual (Raspberry/Arduino/STM32 sample program and user manual, etc.)
Application:
- Ultraviolet tester
- Outdoor ultraviolet detector
- Germicidal lamp
Package Includes:
1 x UV Sensor (C)
1 x PH2.0 5PIN wire
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 973.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Digital LTR390-UV Ultraviolet Sensor (C) Direct UV Index Value Output, I2C
- Product Code: EC-17768
- Availability: 21
-
Rs.825.00
- (Excluding 18% GST)
