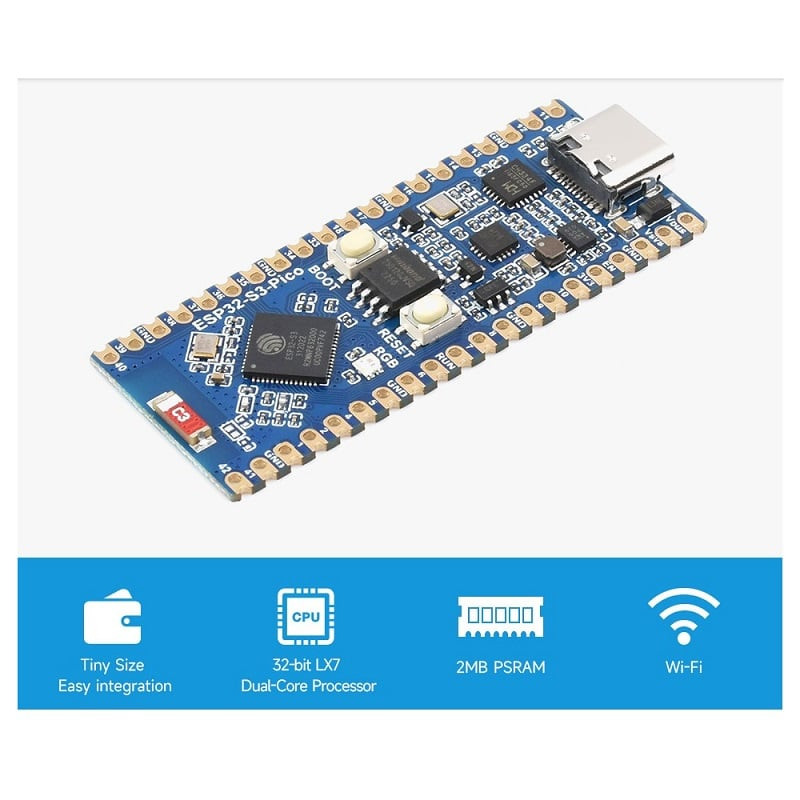

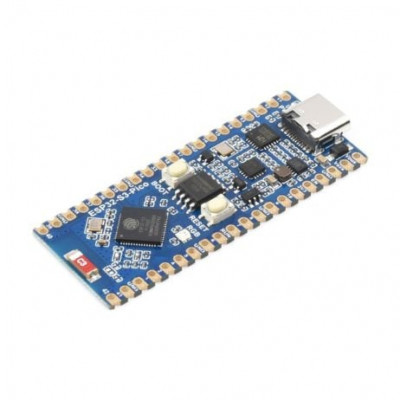

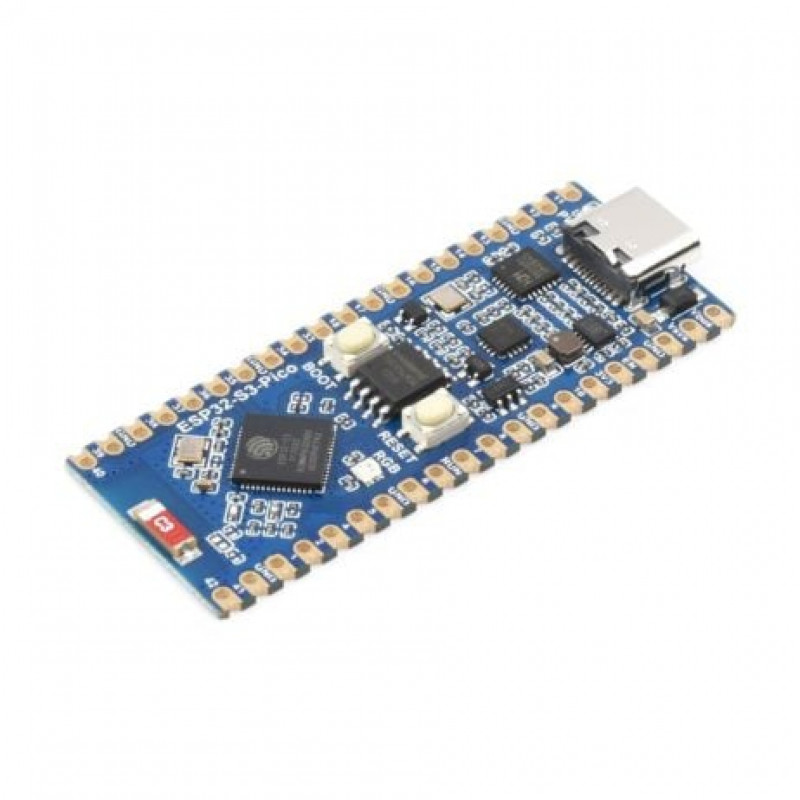

The ESP32-S3-Pico is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces.

Adopts ESP32-S3R2 as the main chip, which is an MCU chip with integrated 2.4 GHz Wi-Fi and Bluetooth 5 (LE).

The interface chips are CH343 and CH334, so you can experience the fun of USB and UART development with a single USB-C port, and no more trouble switching interfaces.

The DC-DC chip adopts MP28164, a high-efficiency buck-boost chip, which adopts PWM fixed-frequency current control mode to optimize circuit stability and response speed.


Features:-

  • Adopts ESP32-S3R2 as the main chip.
  • Comes with an Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz.
  • Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, and 16MB Flash memory.
  • Type-C connector, easier to use.
  • Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface.
  • Onboard DC-DC chip MP28164, high-efficiency DC-DC buck-boost chip with load current up to 2A.
  • Supports multiple low-power operating states, the adjustable balance between communication distance, data rate, and power consumption to meet the power requirements of various application scenarios.

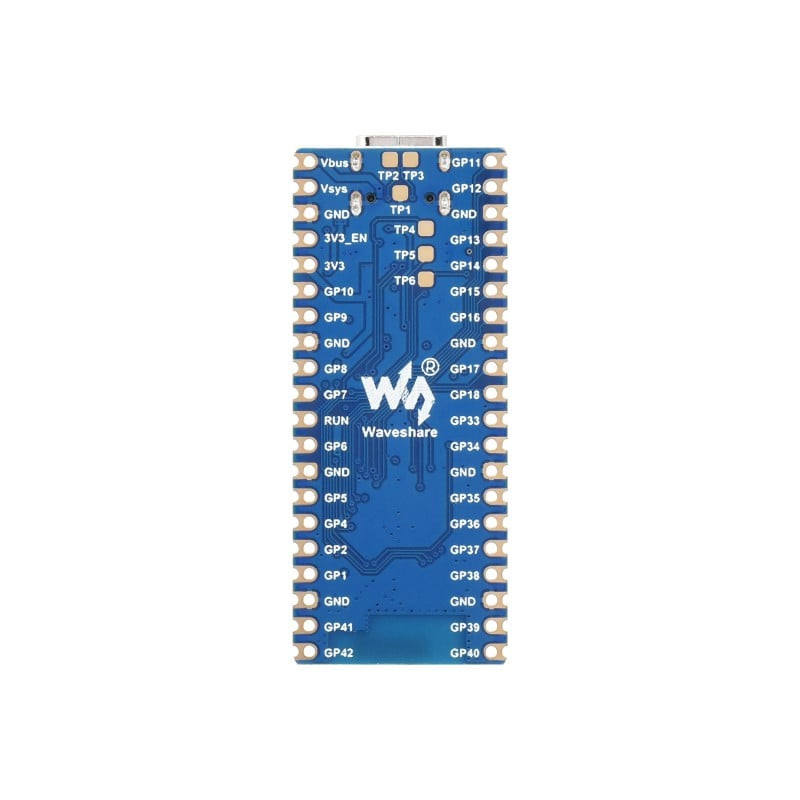

  • 27 × multi-function GPIO headers.
  • Castellated module allows soldering directly to carrier boards.
  • Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly.


Specifications:-

  • Processor : 32-bit LX7 dual-core processor
  • Flash memory : 16MB
  • SRAM : 512KB
  • ROM : 384KB
  • PSRAM : 2MB
  • Onboard chips : CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface.
  • Peripheral interfaces : OTG, SPI, I2C, UART, ADC, PWM, and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc
  • USB Type : Type-C port
  • Frequency : 240


Package Includes:-

1 x Waveshare ESP32-S3 Microcontroller, 2.4 GHz Wi-Fi Development Board, dual-core processor with frequency up to 240 MHz


Useful link:

To do Hardware and Software setup, please follow this tutorial.
