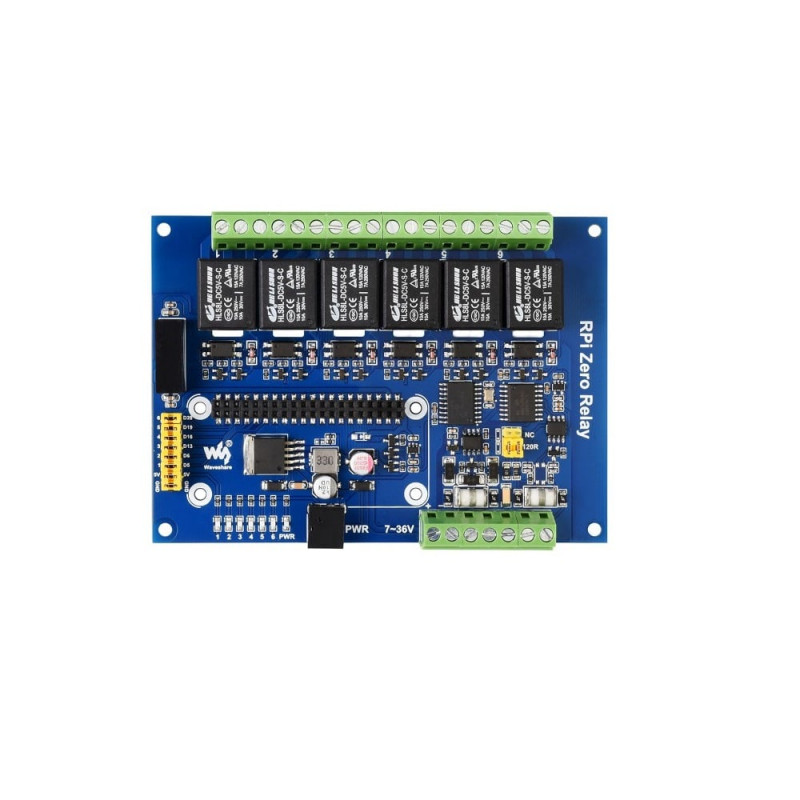

Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN with Isolated Protections
Features:
- RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
- CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
- High quality relay, contact rating: 10A 250V AC or 10A 30V DC

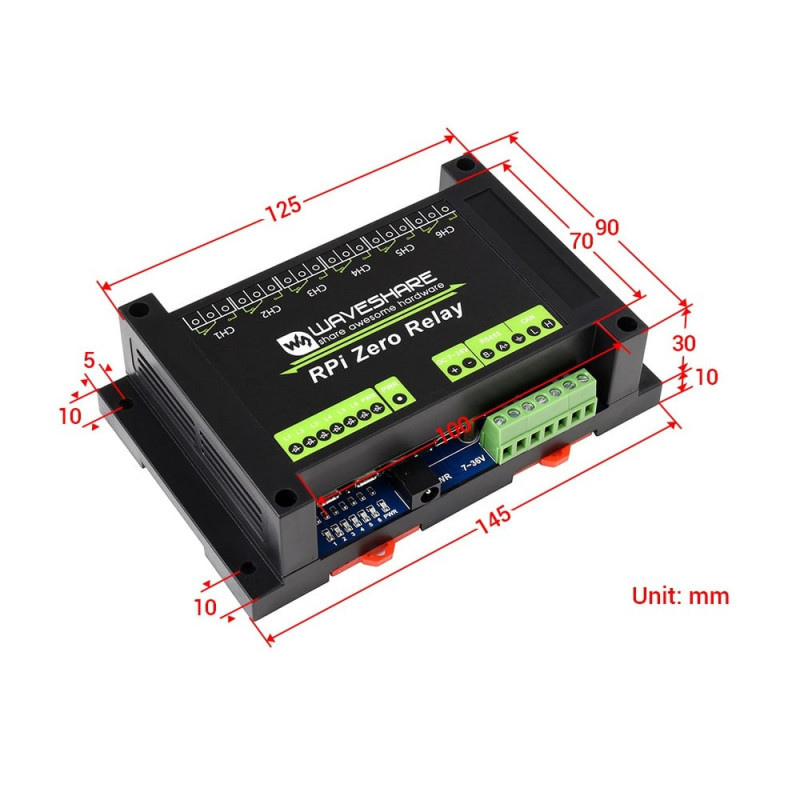

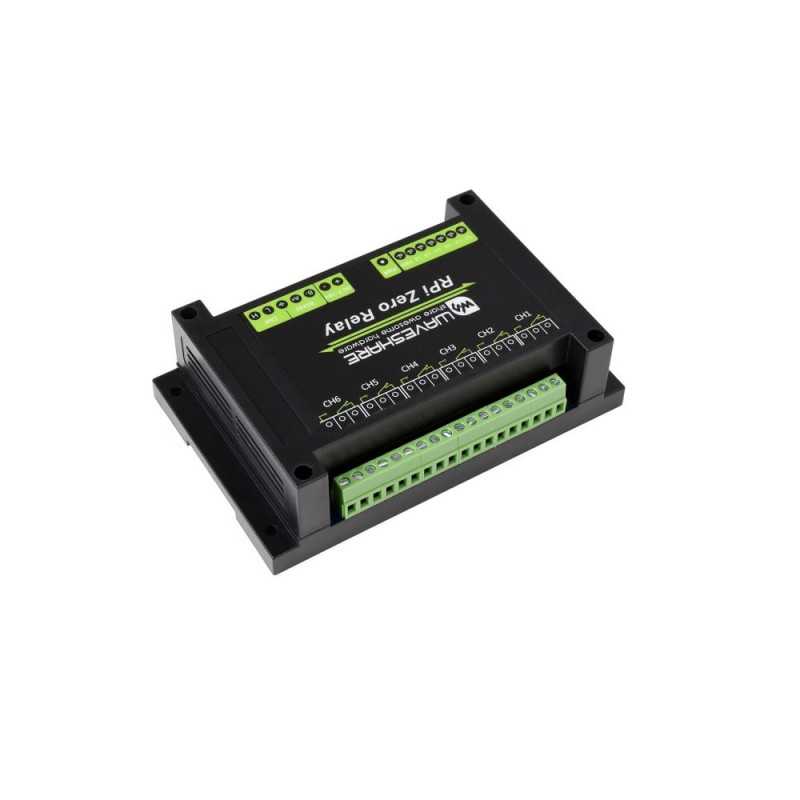

- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Comes with development resources and manual (wiringPi and python examples)
Note : Power adapter not including in kit .
Package Includes:
1 x Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 4246.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN, Isolated Protections
- Product Code: EC-17861
- Availability: Out Of Stock
-
Rs.3599.00
- (Excluding 18% GST)
