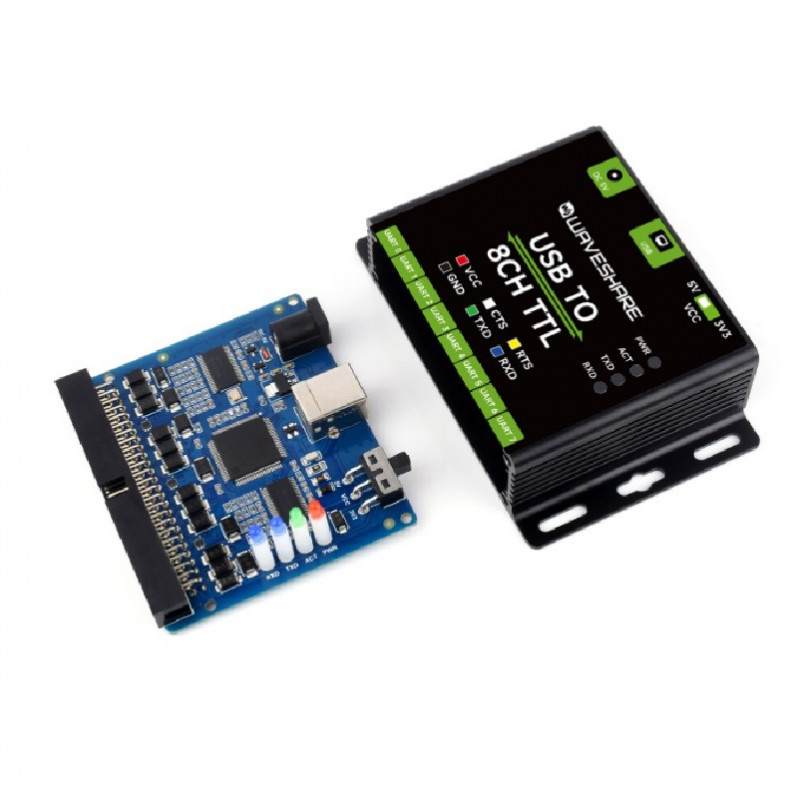

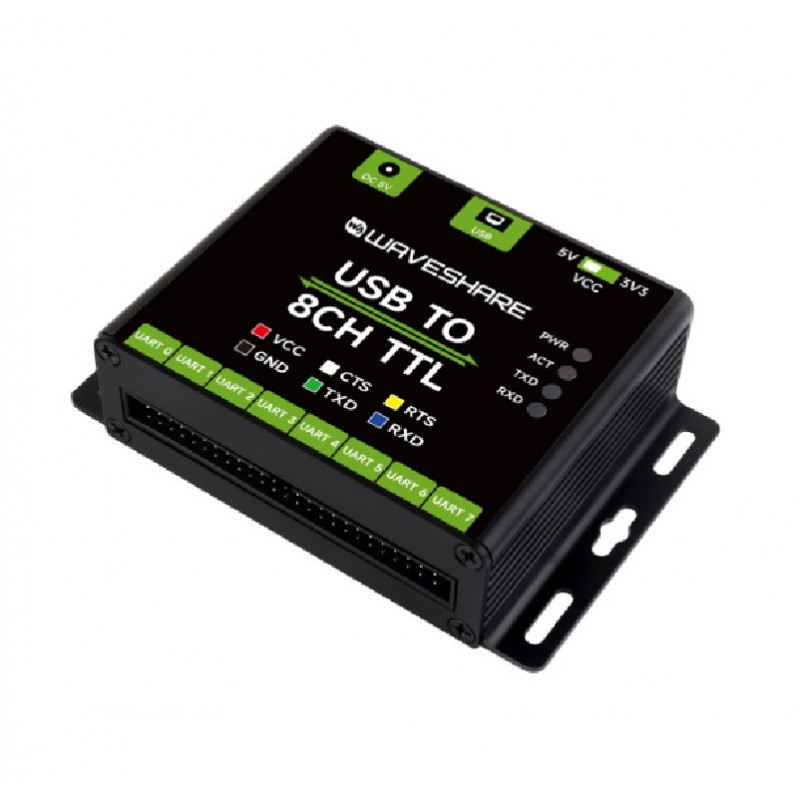

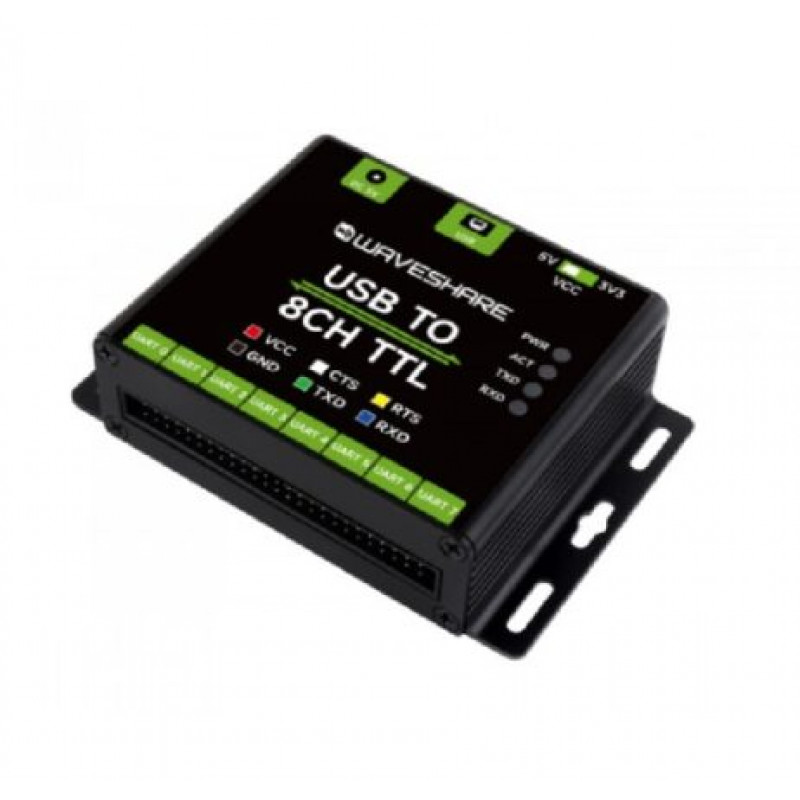

Industrial USB TO 8CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support, USB To TTL Adapter

Features:

1. Extending USB to 8CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
2. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
3. Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
4. Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
5. Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

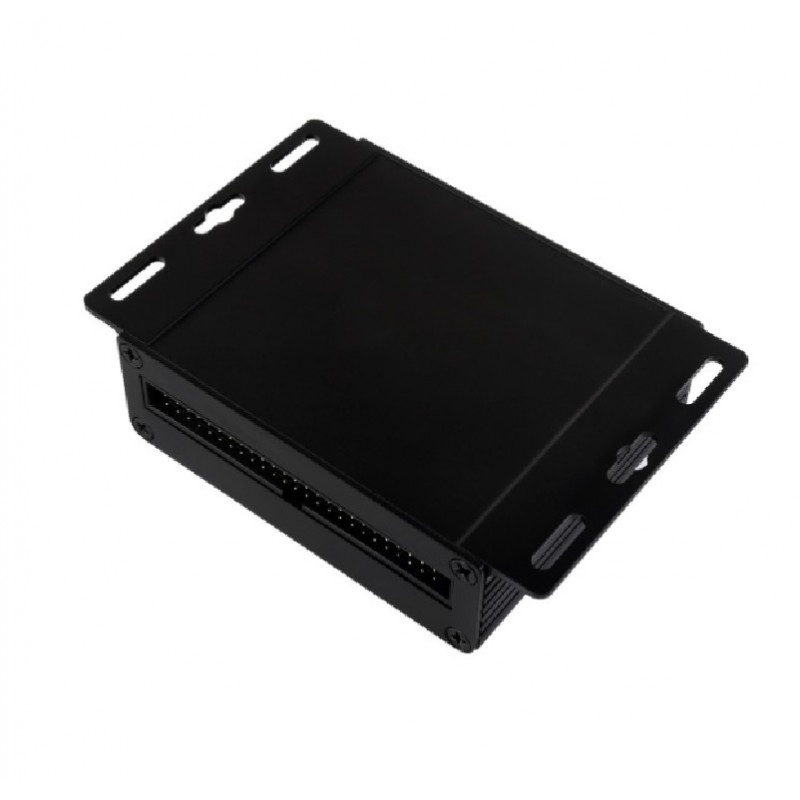

6. Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
7. 4 LEDs for indicating the power and transceiver status

Specifications:

1. PRODUCT TYPE: Industrial USB to TTL converter
2. HOST PORT: USB
3. DEVICE PORT: TTL (UART)
4. BAUDRATE: 1200bps ~ 2M
5. Temperature: -40 ~ 85
6. Humidity: 5%RH ~ 95%RH
7. OPERATING SYSTEM: Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

USB

1. Operating voltage: 5V
2. Connector: USB-B
3. Protection: 200mA self-recovery fuse, isolated output

POWER SUPPLY

1. Connector: 5V DC power jack
2. Protection: Over-voltage protection and anti-reverse protection
3. Connector: 50PIN anti-reverse header

TTL (UART)

1. Protection: TVS diode, surge protection & ESD protection
2. TTL level: 3.3V/5V (configurable)
3. PWR: Power indicator, lights up red when there is USB connection and voltage is detected

Package Includes:

1 x USB TO 8CH TTL

1 x USB cable (~1.2m)

1 x 50PIN squid wire
