Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control

Industrial USB TO TTL 6pin serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc.

Features:

1. Adopts original FT232RNL chip, with stable high-speed communication, reliability, and better compatibility.
2. Built-in self-recovery fuse and ESD for over-current/over-voltage protection, counter-current proof, improving shock resistance.
3. Onboard IO protection, anti-surge design, with stable communication and safety.
4. Onboard TTL serial port 3.3V/5V level transilation circuit, for switching TTL communication level.
5. Onboard 3x LED indicator, for checking power and signal transmitting status.
6. Plastic case, sandblasting process, nice-looking and compact.

Specifications:

1. Product: Industrial USB TO TTL serial cable
2. Chip Scheme: FTDI original FT232RNL
3. Host Port: USB
4. Data rate: 300bps ~ 3Mbps
5. Device port: UART
6. USB Port: Connector: USB-A, Protection: self-recovery fuse, ESD protection
7. UART Port: Connector: separated 6pin female header, Protection: IO protection diode

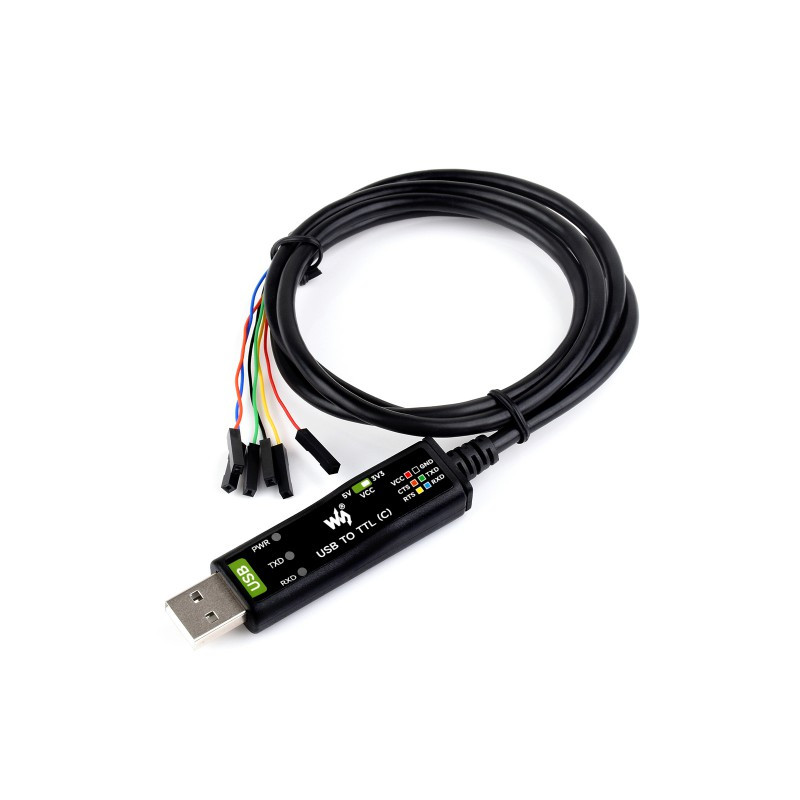

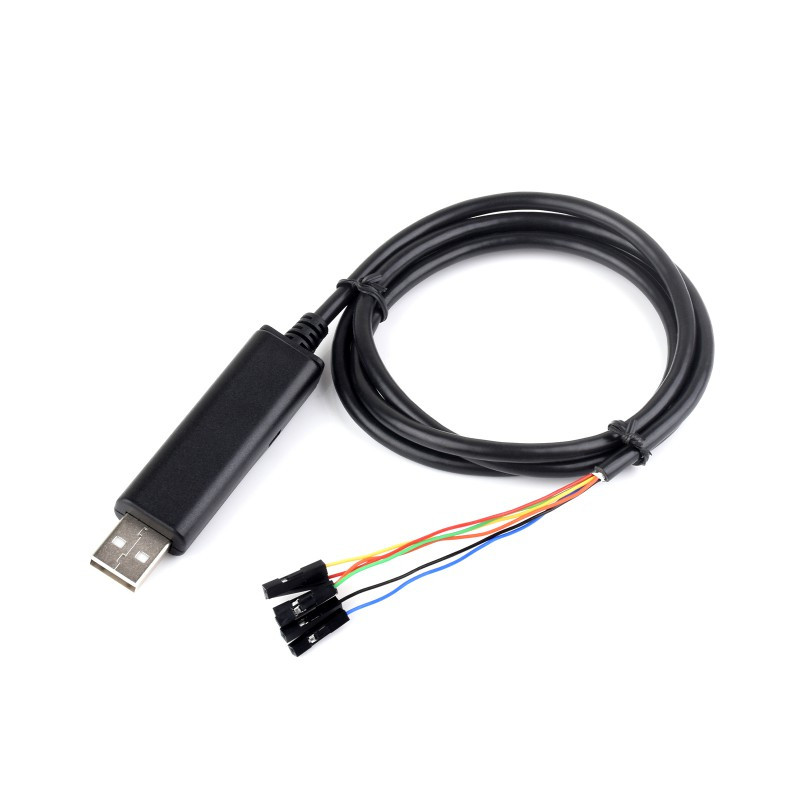

8. Cable: Black, PVC sheath, total length 1m

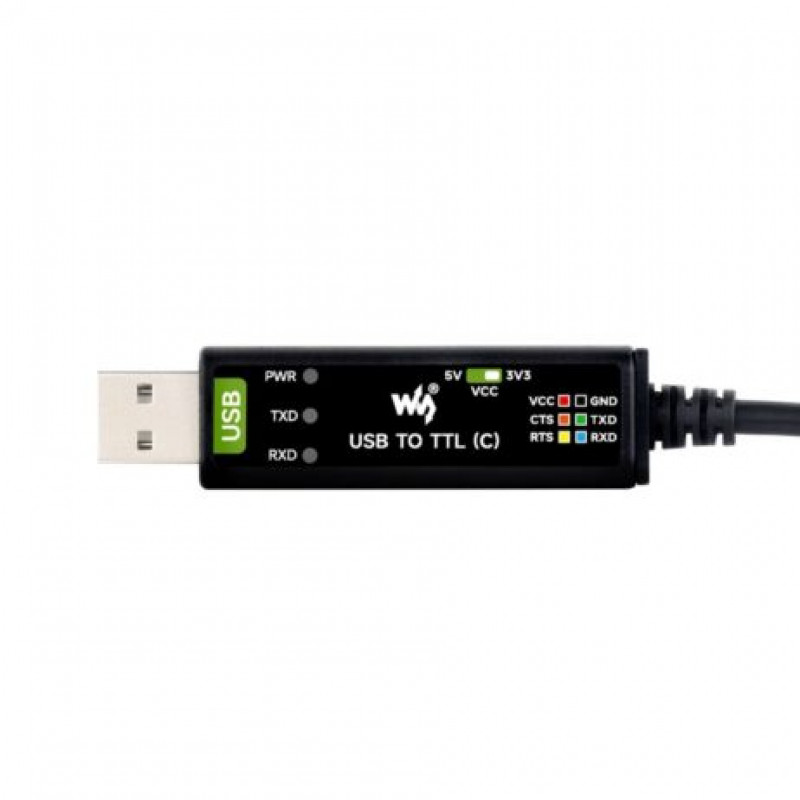

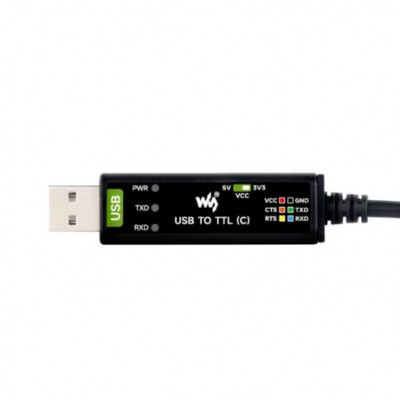

• Indicator:

1. PWR: power indicator, turns on when there is USB connection and voltage is detected
2. TXD: TX indicator, turns on while the USB port is sending data
3. RXD: RX indicator, turns on while the device port is sending data back

Package Includes:

1 x Waveshare Industrial USB TO TTL (C) 6pin Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Hardware Flow Control
