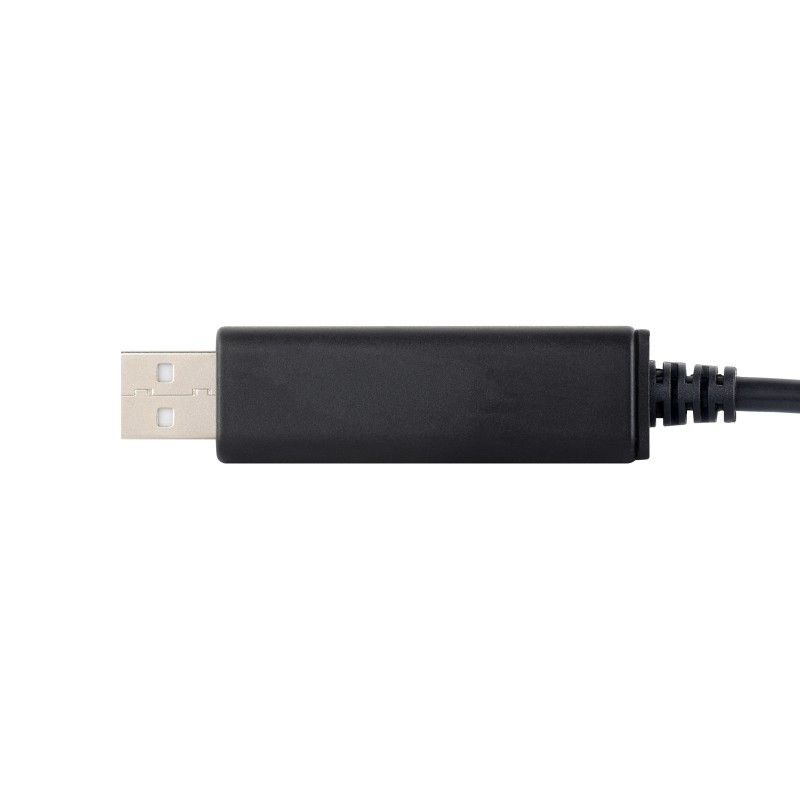

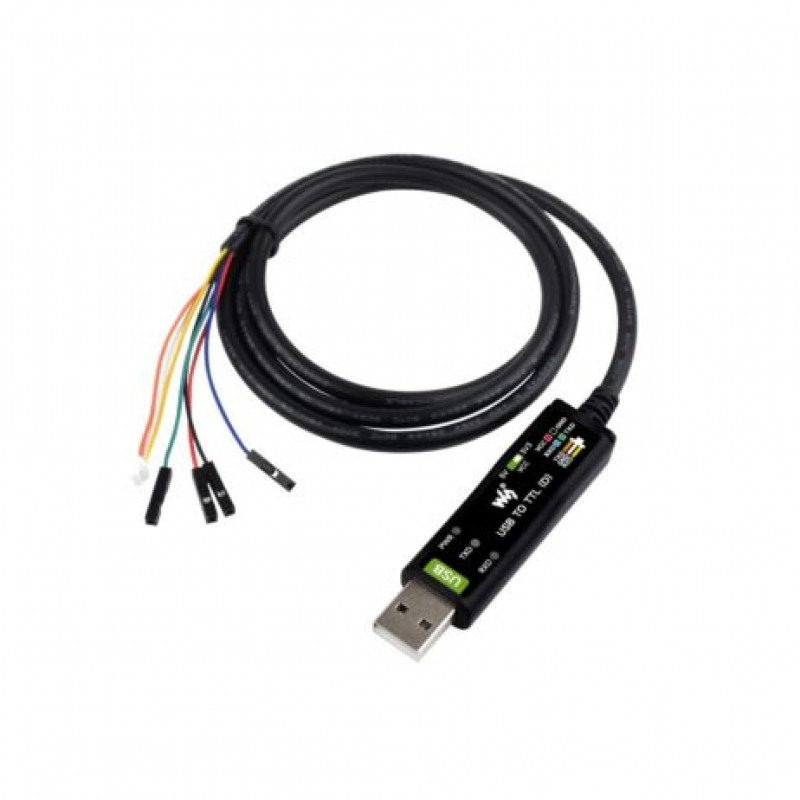

Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.

Features:

1. Adopts original FT232RNL chip, with stable high-speed communication, reliability, and better compatibility.
2. Built-in self-recovery fuse and ESD for over-current/over-voltage protection, counter-current proof, improving shock resistance.
3. Onboard IO protection, anti-surge design, with stable communication and safety.
4. Onboard TTL serial port 3.3V/5V level transilation circuit, for switching TTL communication level.

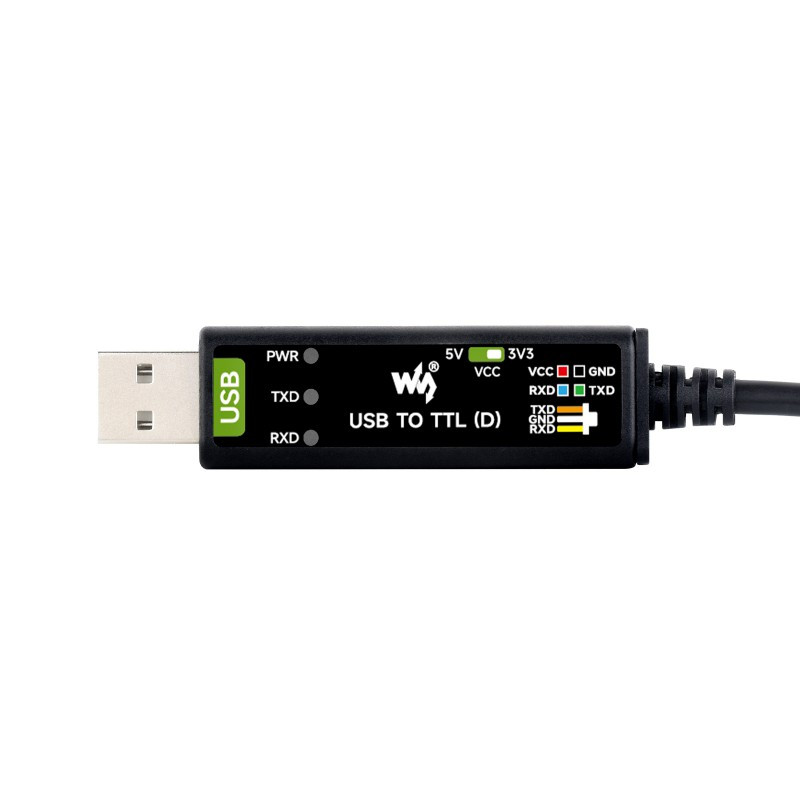

5. Onboard 3x LED indicator, for checking power and signal transmitting status.
6. Plastic case, sandblasting process, nice-looking and compact.
7. UART PORT: Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector, Protection: IO protection diode
8. INDICATOR: PWR: power indicator, turns on when there is USB connection and voltage is detected, TXD: TX indicator, turns on while the USB port is sending data, RXD: RX indicator, turns on while the device port is sending data back

Specifications:

1. Product: Industrial USB TO TTL serial cable
2. Chip Scheme: FTDI original FT232RNL
3. Host Port: USB
4. Data rate: 300bps ~ 3Mbps
5. Device Port: UART
6. Operating Temperature :-40~80
7. Cable: Black, PVC sheath, total length 1m

Package Includes:

1 x Waveshare Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, Suitable For Raspberry Pi 5 Serial Port Debugging
