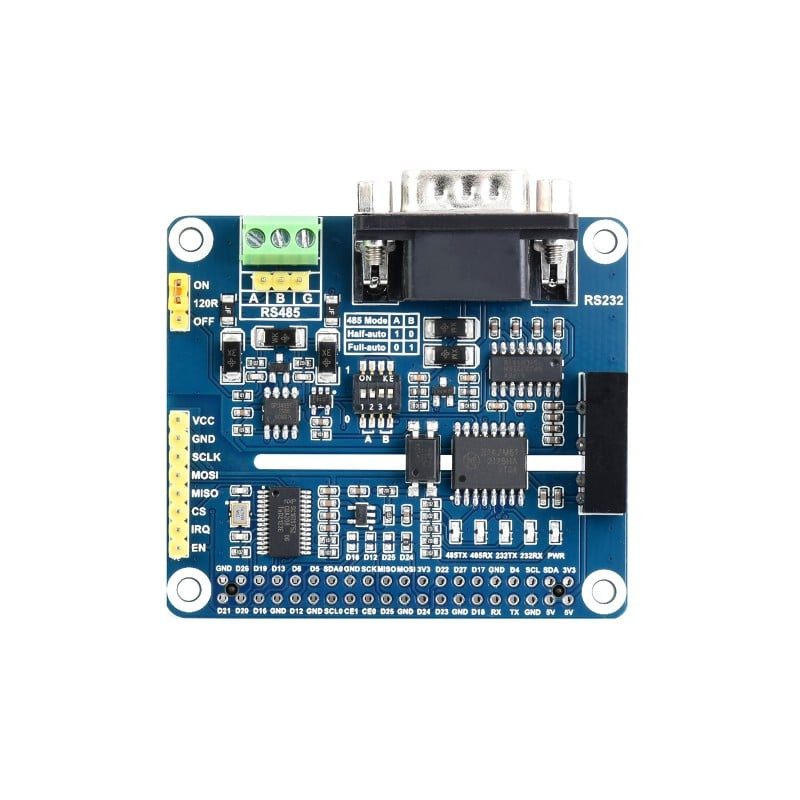

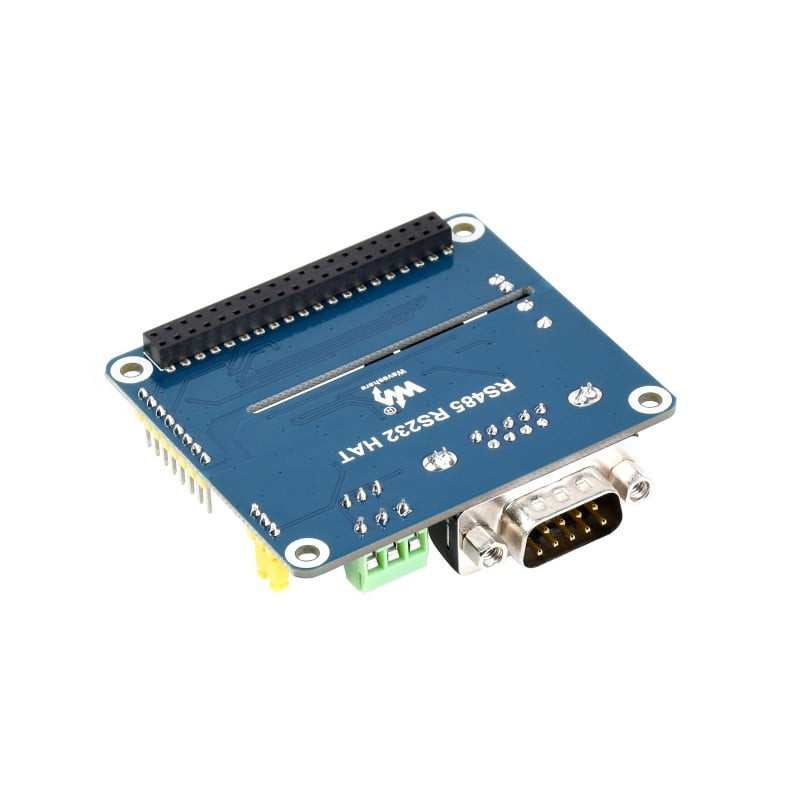

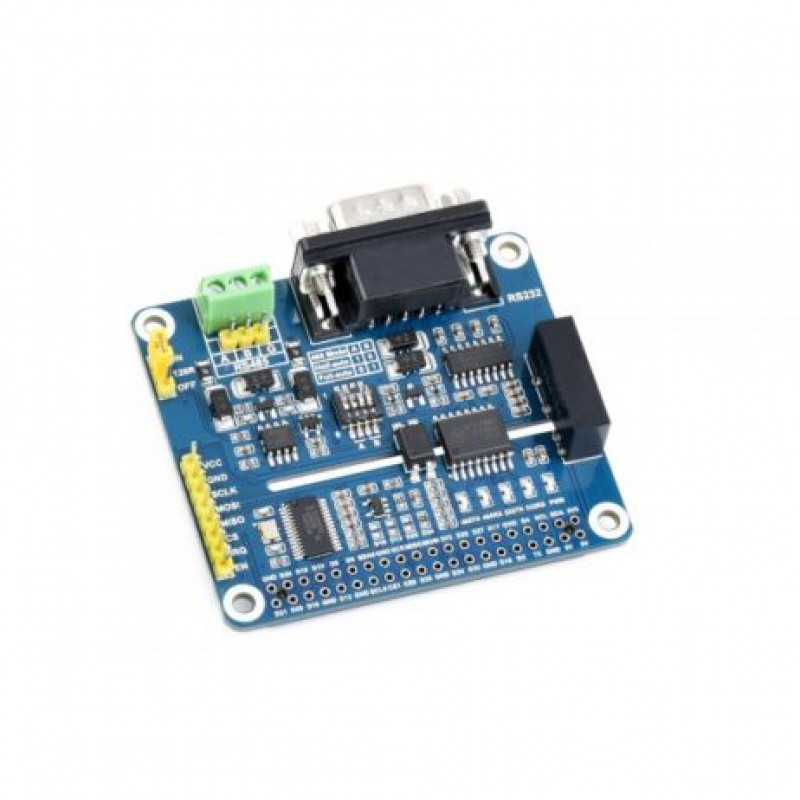

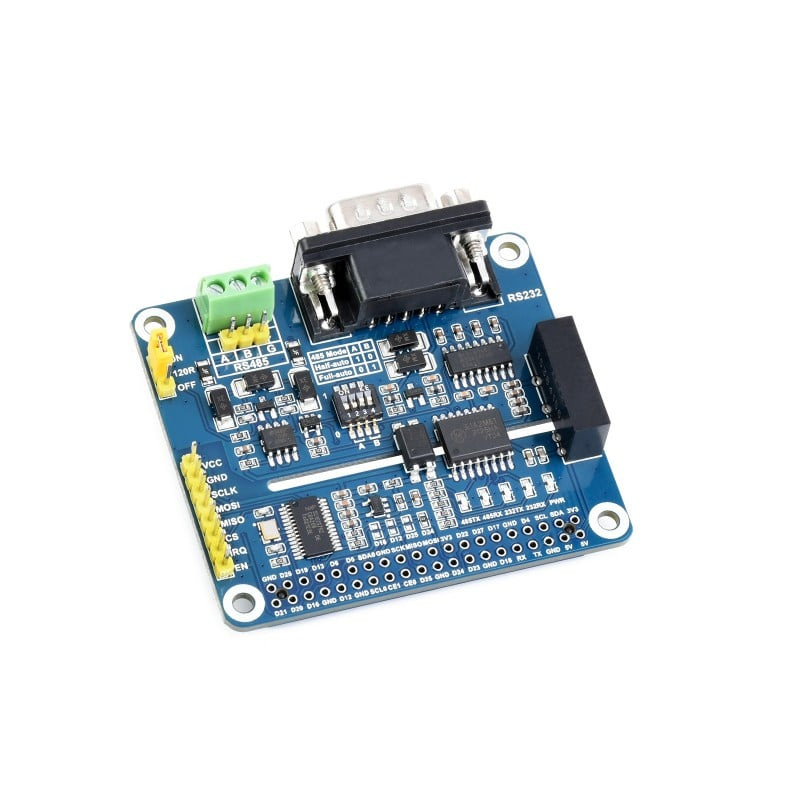

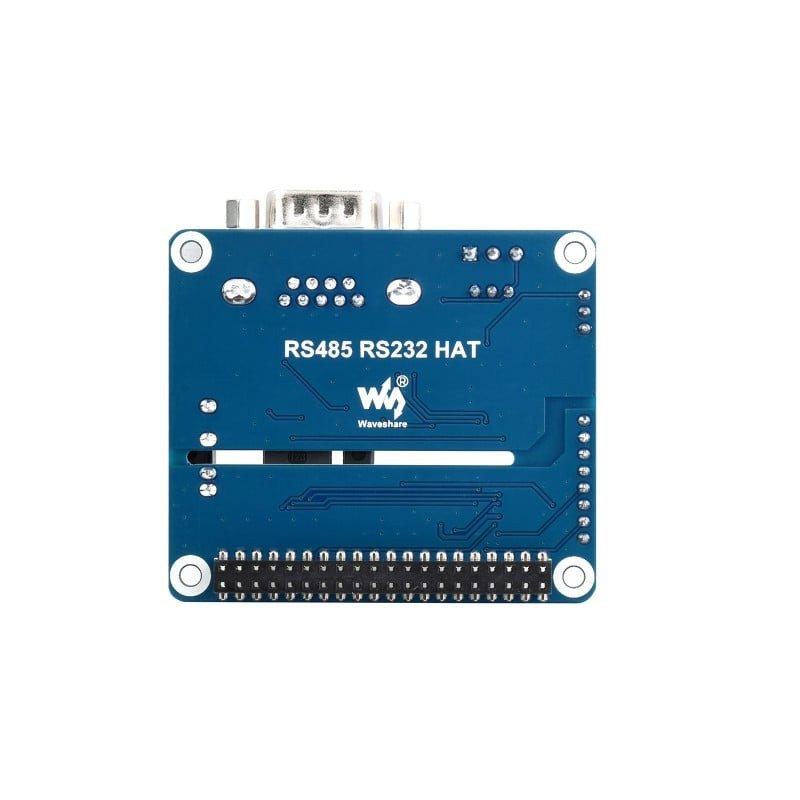

RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits.
Features:
- Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
- Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps
- RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch
- RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance
- Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity.
- Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status
- Lead out the SPI control interface for easy access to main control boards such as Arduino
- Provide complete supporting information manuals (C and Python sample programs and user manuals, etc.)
Useful link:
To do Hardware and Software setup, please follow this tutorial.
Package Includes:
1 x Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2335.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control
- Product Code: EC-17790
- Availability: 24
-
Rs.1979.00
- (Excluding 18% GST)
