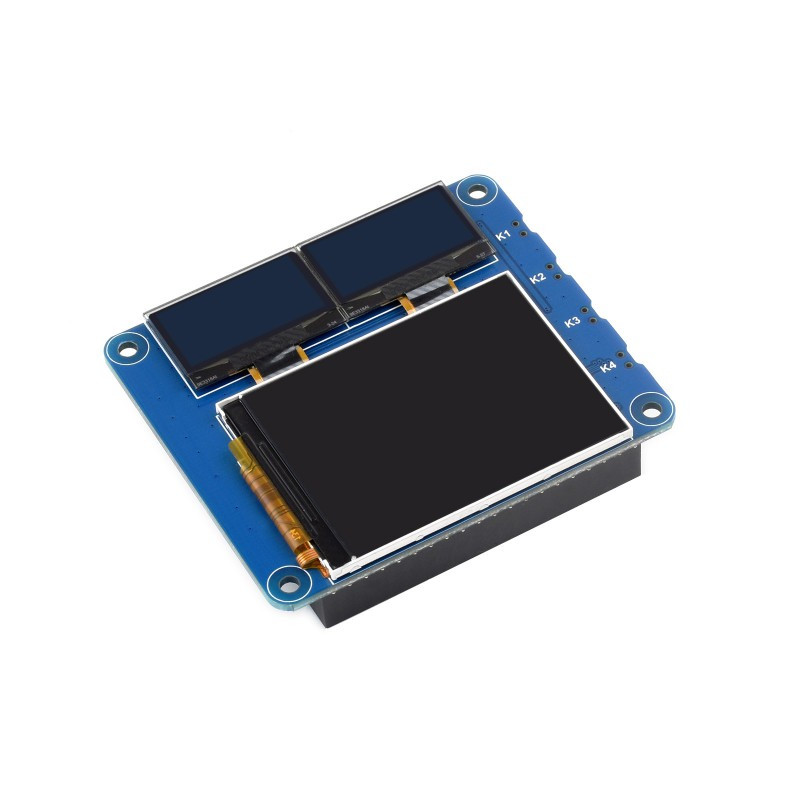

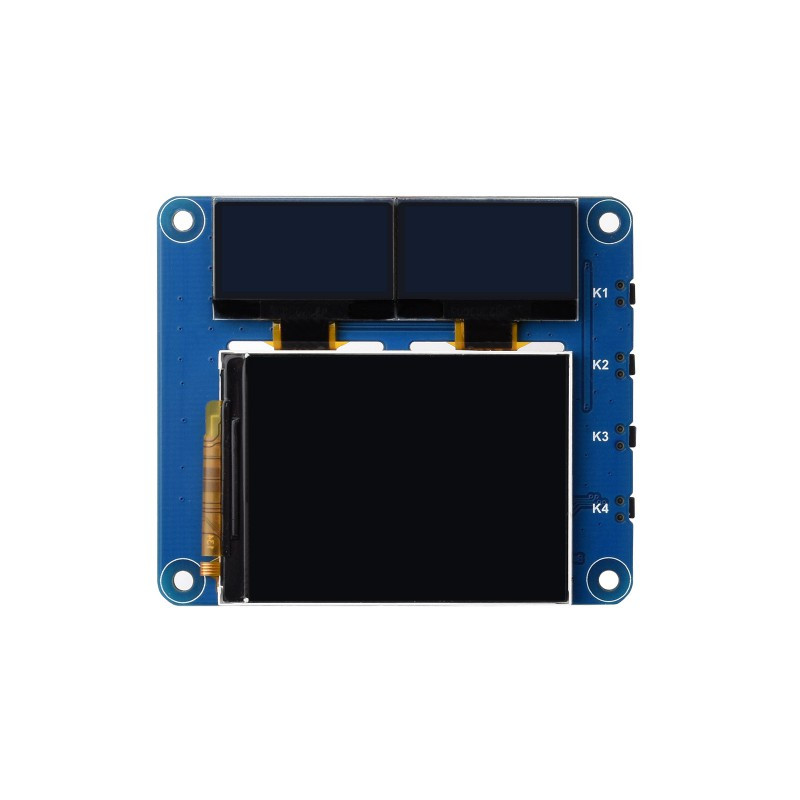

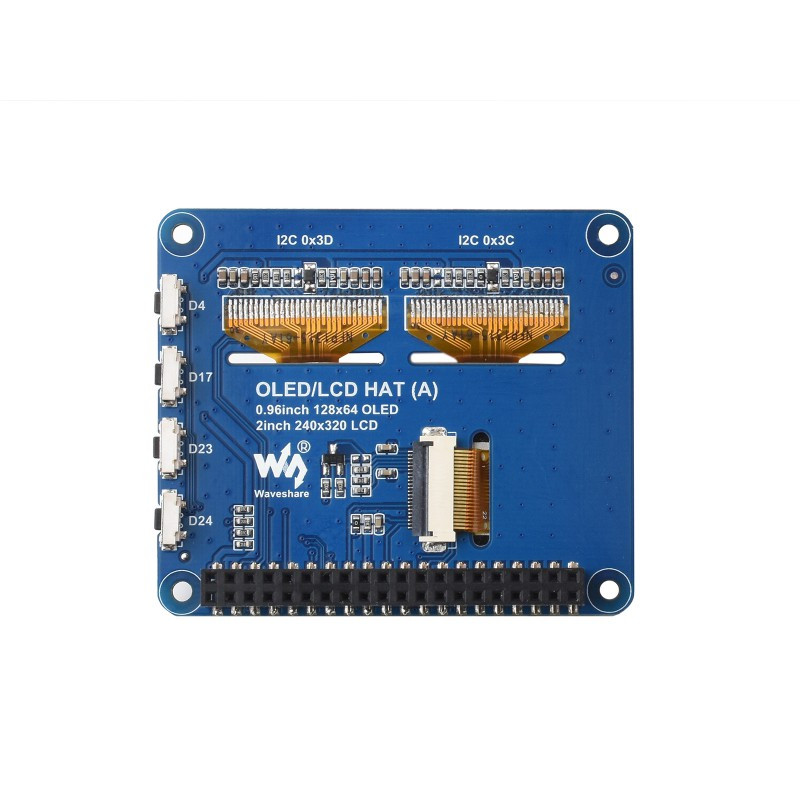

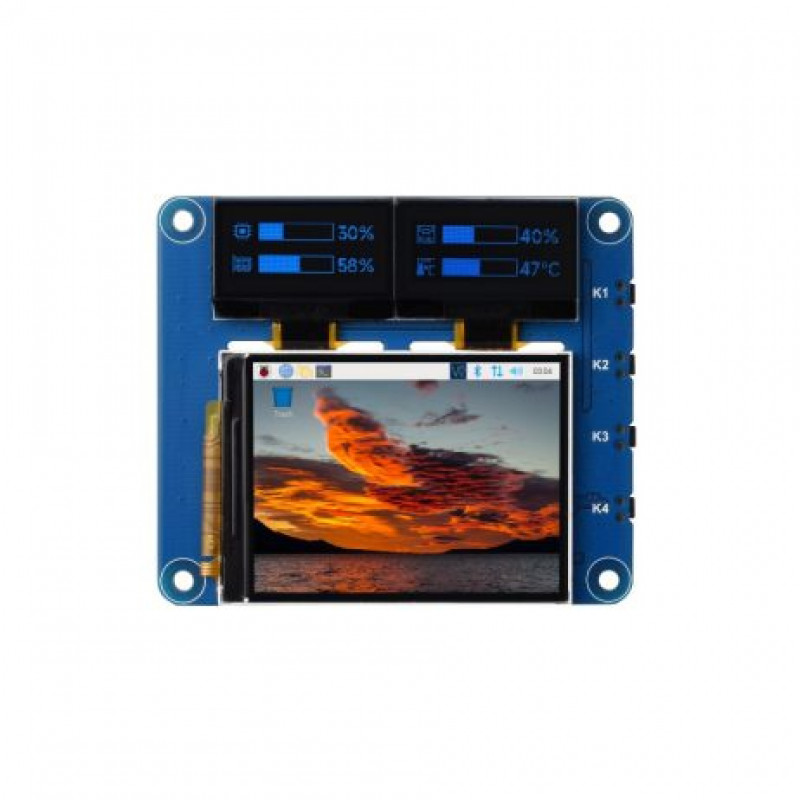

Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen And Dual 0.96inch Blue OLED Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
Features:
- Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
- 2inch IPS LCD Main Screen with built-in ST7789VW driver chip, SPI interface communication, wide viewing angle,
- supports 262K color display, 240320 resolution
- Dual 0.96inch OLED secondary screens with built-in SSD1315 driver chip, I2C interface communication, blue
- display color, 12864 resolution can be used to display key information, status indicator messages or small graphics
- Onboard 4x user-defined keys for extended applications
- Comes with online development resources and a manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
Package Includes:
1 x Waveshare Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens
- Product Code: EC-18547
- Availability: 10
-
Rs.1406.00
- (Excluding 18% GST)
