Based on a high-performance Cortex processor, combined with the high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicated fingerprinting algorithm, all you need to do is just send some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision

Pinouts:

• VIN: Power 3.3V
• GND: ground
• RX: Serial data input (TTL level)
• TX: Serial data output (TTL level)
• RST: Sleep Control Interface:
• High level: module power supply start
• Low level: module power down sleep
• WAKE: wake-up pin, when RST is at a low level (sleep), the fingerprint module will be activated by touching the surface of the collector with a finger, and this pin outputs a high-level

Features:

1. Easy to use by some simple commands, you dont have to know any fingerprint technology or the module infrastructure.
2. The commercial fingerprinting algorithm supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification.
3. Capacitive sensitive detection, just touch the collecting window lightly for fast verification.
4. Highly integrated hardware, processor, and sensor in one small chip, suitable for small size applications.
5. The narrow stainless steel rim supports 360 Omni-directional verification.
6. Embedded human sensors, the processor will enter sleep automatically, and wake up when touching, lower power consumption.

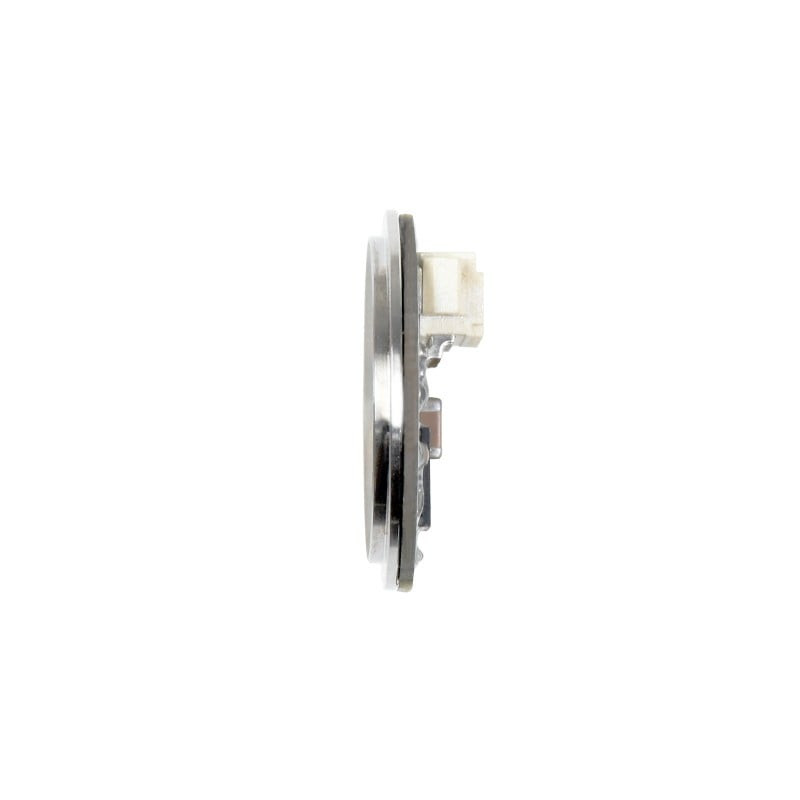

7. Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi.

Package Includes:

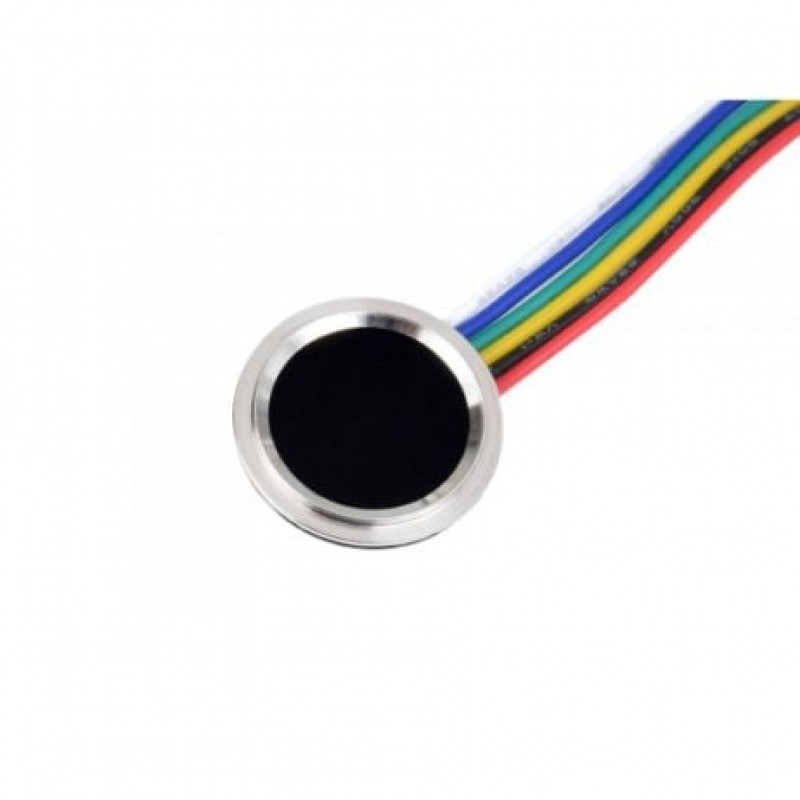

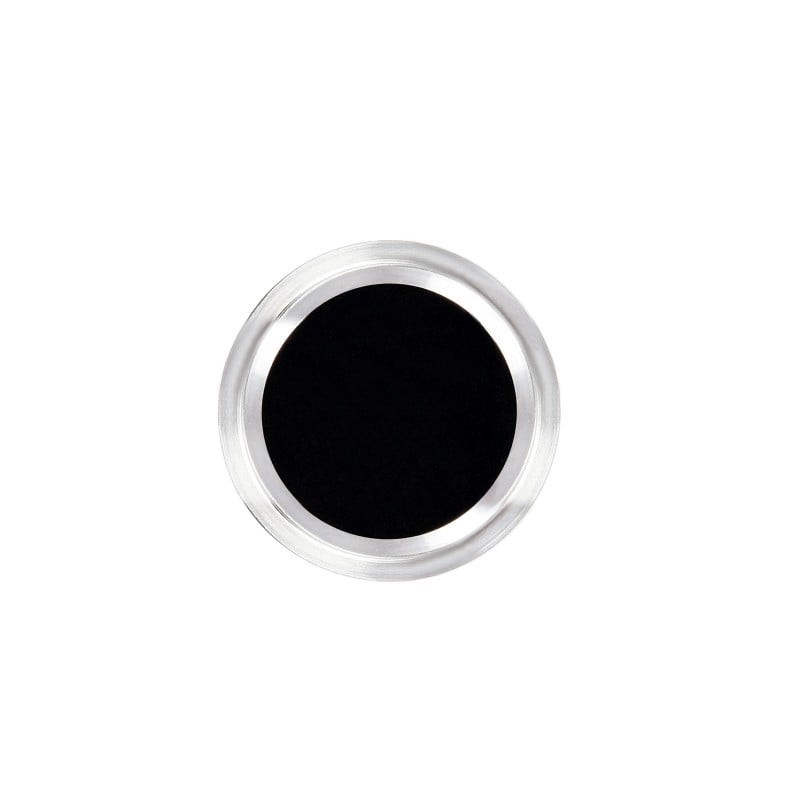

1 x Waveshare Round-Shaped All-In-One Capacitive Fingerprint Sensor (D), Cortex Processor, 360 Verification
