This tracker sensor have high sensitivity infrared detectors, high precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable.5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
Connections:
- VCC 3.3V ~ 5V
- GND GND
- IR1 MCU.IO (ch1, analog output)
- IR2 MCU.IO (ch2, analog output)
- IR3 MCU.IO (ch3, analog output)
- IR4 MCU.IO (ch4, analog output)
- IR5 MCU.IO (ch5, analog output)
Features:
- Robot line tracking
- 5-ch ITR20001/T infrared detector
- High sensitivity
- Anti-jamming
- Stable performance
Package Includes:
1 x Tracker Sensor
1 x XH2.54 7PIN wire
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 581.74 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

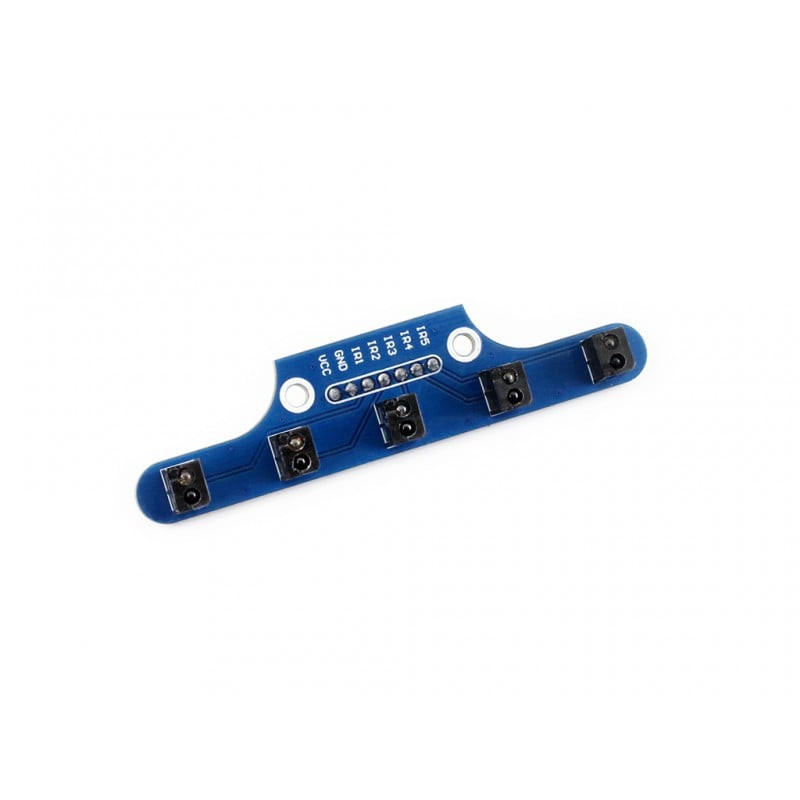

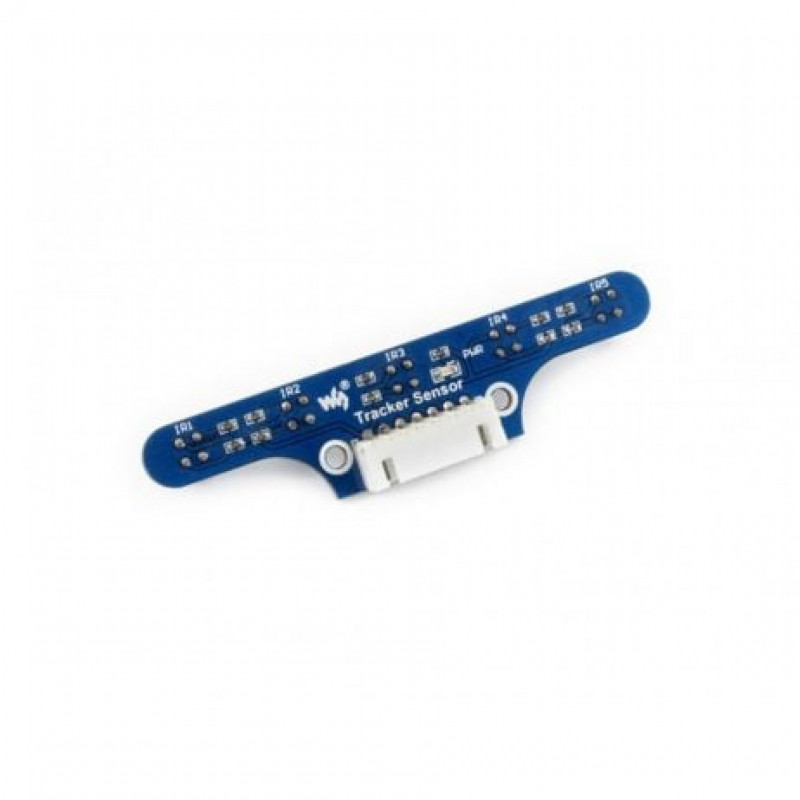

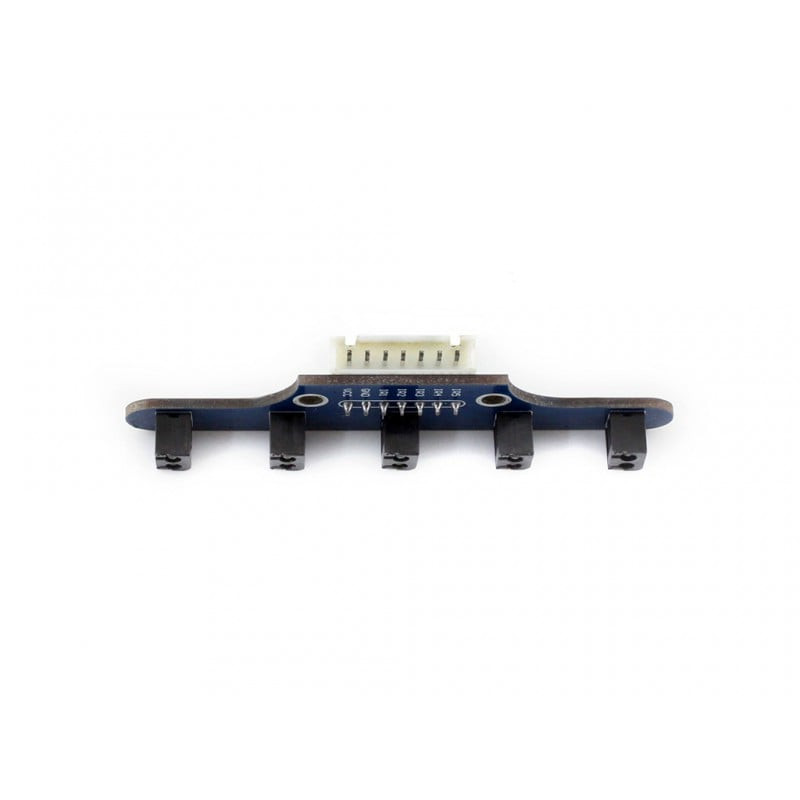

Waveshare Tracker Sensor, Infrared Line Tracking
- Product Code: EC-17663
- Availability: 16
-
Rs.493.00
- (Excluding 18% GST)
