Waveshare UART TO ETH is used for data bidirectional transparent transmission between TTL and Ethernet. T2 module itself complete protocol conversion, the parameter can be set by built-in webpage or software. Once set permanent preservation.
TCP232-T2 is a new and tiny size serial to Ethernet module which realizes data bidirectional transparent transmission between TTL Port and RJ45 Port, it can also be used in RT232/ RS485 by level shift circuit. T2 is equipped with a Cortex-M0 core. It has characters of low power, fast speed, high efficiency, strong compatibility, and it is easy to use.
Features:
- M0 series 32-bit ARM processor, fast speed, high efficiency
- 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable
- Auto-reconnecting provides a reliable TCP connection
- Supports customized heartbeat packets, registration packets, packet header, customized web page RFC2217-like protocol, DNS domain name resolution, DHCP.
- Firmware is upgradable via the network.
- Restore to factory settings via software and/or hardware.
- Comes with a default MAC address, which is customizable.
- Supported protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client.
- Configurable via web page, AT commands, serial protocol, and network protocol provides configuration protocol that can be integrated into your own software.
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software.
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Package Includes:
1 x Waveshare UART TTL to Ethernet Converter
Specifications :-
| Protection | 1.5KV electromagnetic isolation |
| Interface | 3.3V TTL |
| Power Supply | 3.3V DC or 5V DC |
| Operating Current | 150mA (avg)/160mA (max) |
| Operating temperature | -25~75C |
| Power consumption | <1W |
| Storage condition | -40~105C, 5~95%RH |

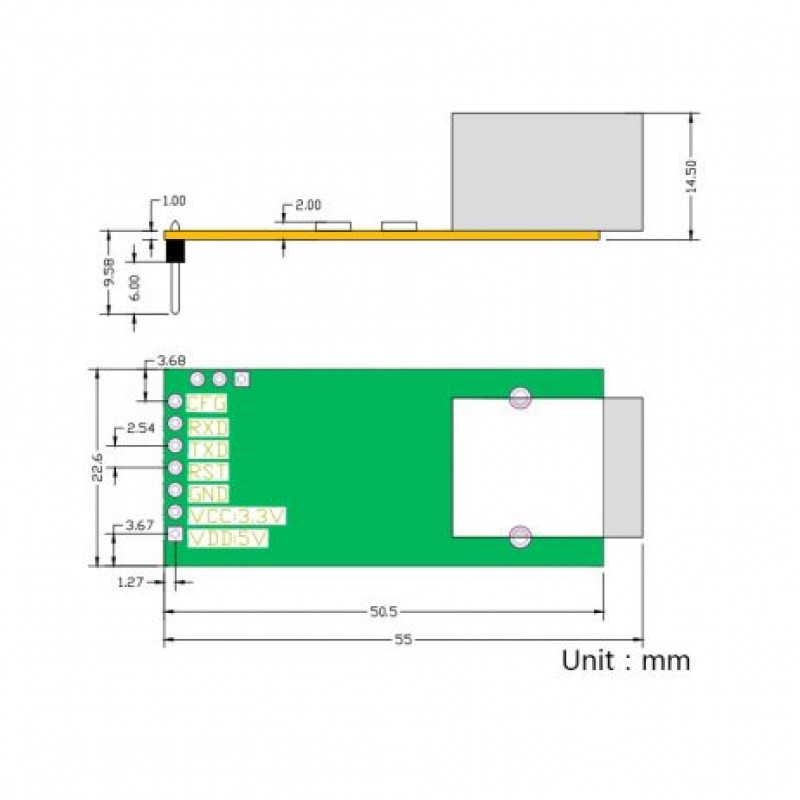

| Length (mm) | 55 |
| Width (mm) | 22.5 |
| Height (mm) | 15.2 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Waveshare |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1296.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

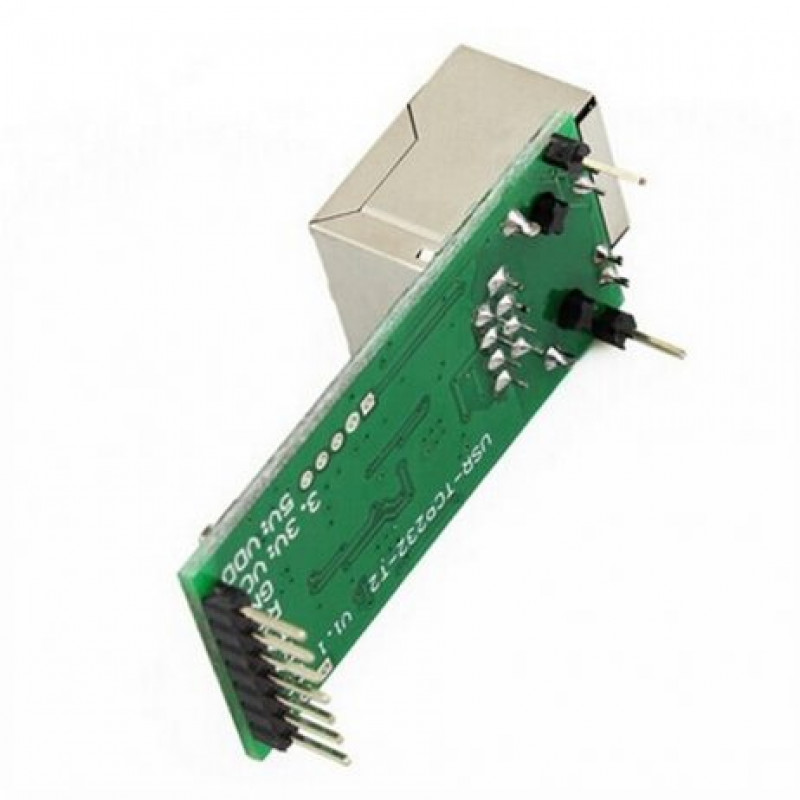

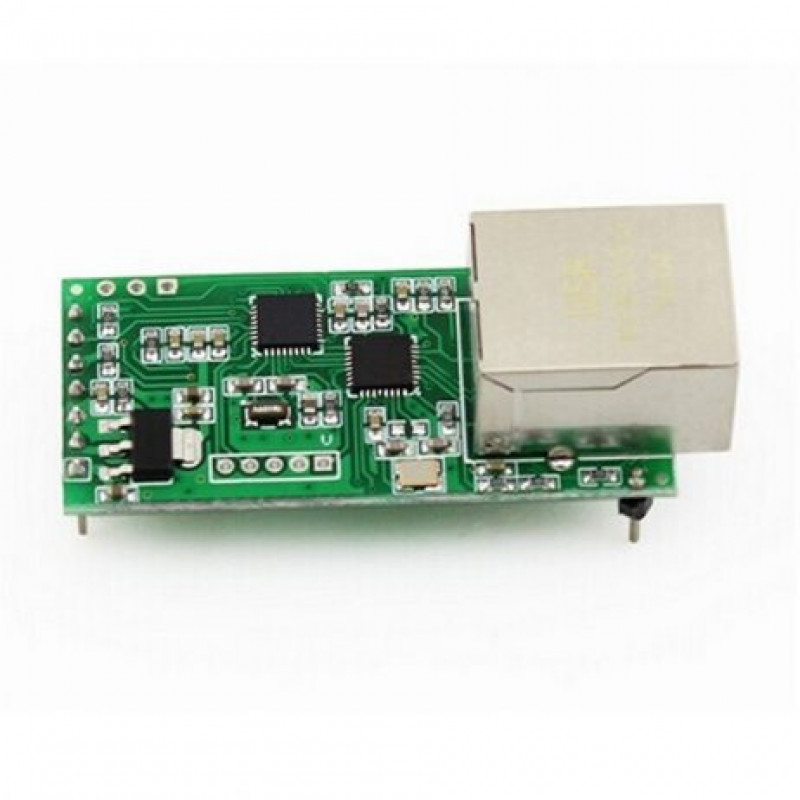

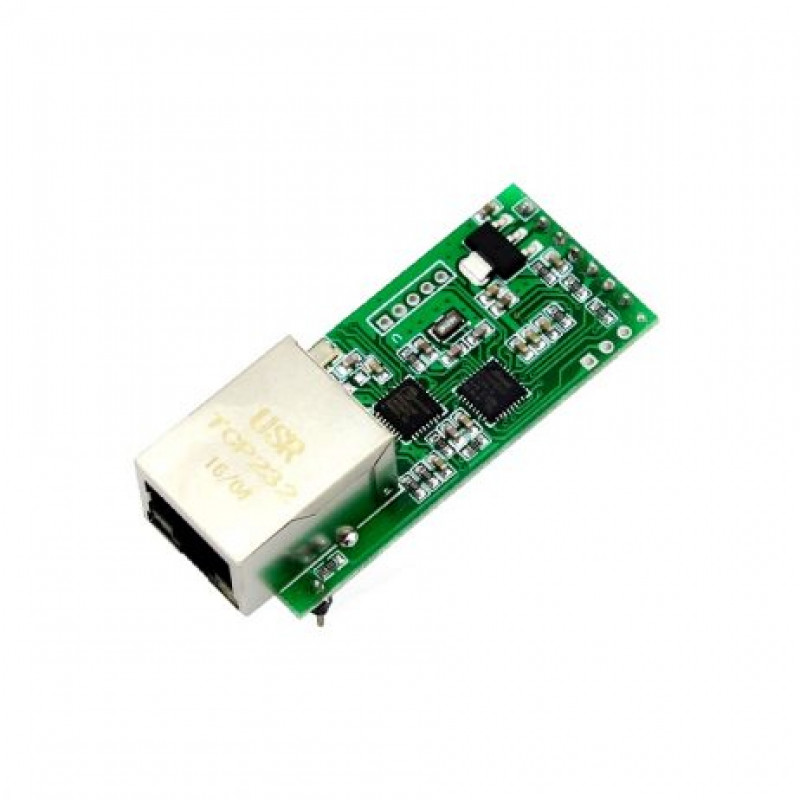

Waveshare UART TTL to Ethernet Converter
- Product Code: EC-5468
- Availability: 145
-
Rs.1099.00
- (Excluding 18% GST)
