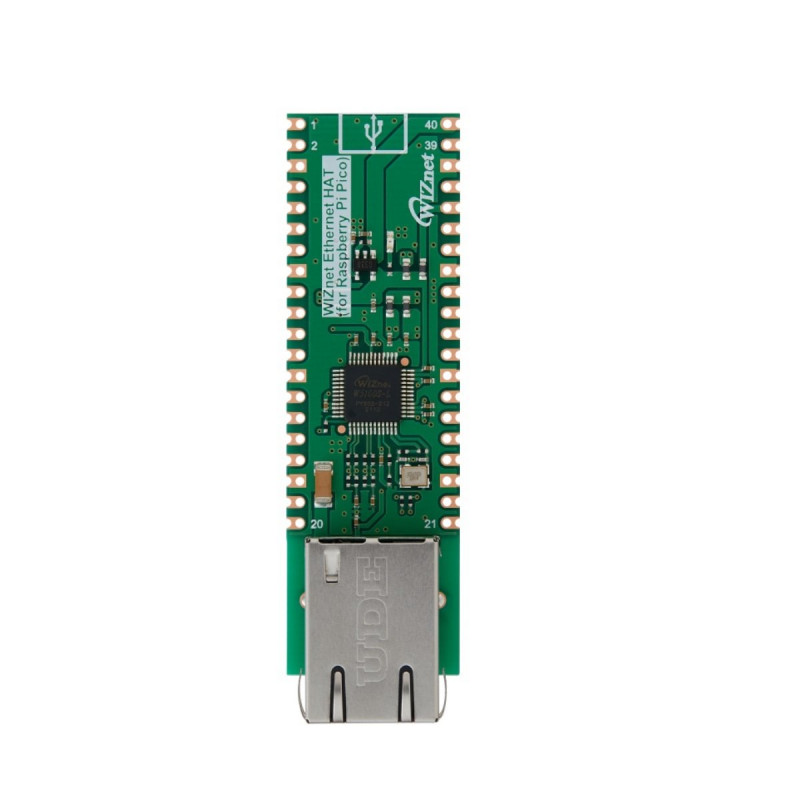

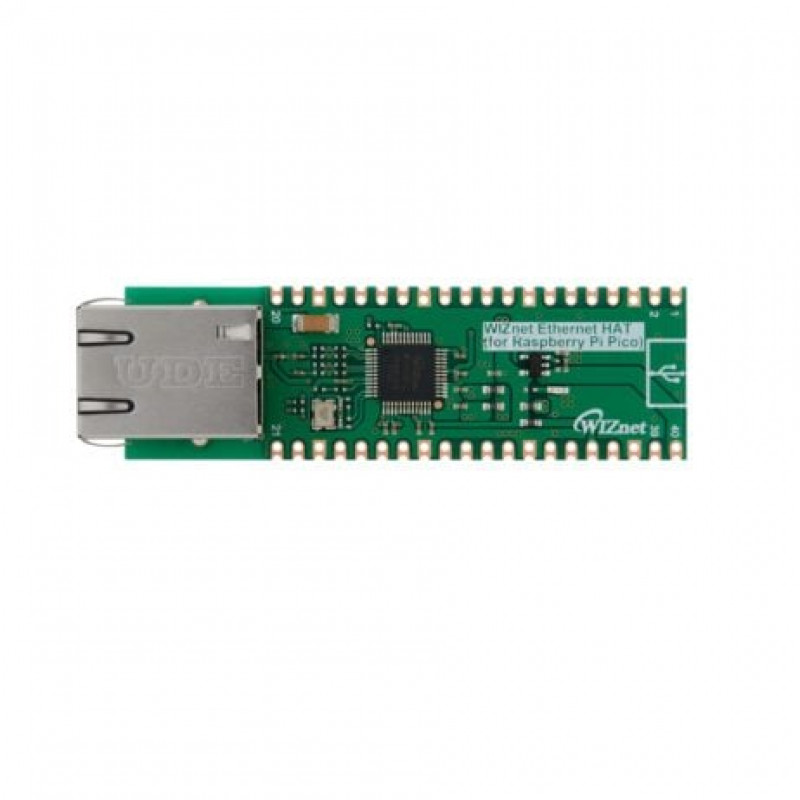

The WIZnet Ethernet HAT is a small, versatile expansion board designed to add Ethernet connectivity to single-board computers such as the Raspberry Pi. The HAT (which stands for Hardware Attached on Top) plugs directly into the Pis 40-pin GPIO header, and includes an Ethernet controller chip, RJ45 connector, and associated circuitry.
The WIZnet Ethernet HAT supports both 10/100Mbps Ethernet speeds and uses the popular W5500 chip, which provides a wide range of features such as TCP/IP protocol stack, network configuration, and data transfer. This also supports various network protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.
Features:
- Includes W5100S
- Supports 4 Independent Hardware SOCKETs simultaneously
- Internal 16 Kbytes Memory for TX/ RX Buffers
- Built-in LDO (LM8805SF5-33V)
- SPI Interface 5V I/O tolerance
- 10 / 100 Ethernet PHY embedded
- Supports Auto-Negotiation
- Full / Half Duplex
- Built-in RJ45 (RB1-125BAG1A)
Package Includes:
1 x WIZnet Ethernet HAT
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 676.14 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
WIZnet Ethernet HAT
- Product Code: EC-17692
- Availability: 15
-
Rs.573.00
- (Excluding 18% GST)
