Features:
- Ultra compact SIP package
- Wide input voltage range (2:1)
- Operating ambient temperature range: -40C to +85C
- Isolation voltage: 1.5K VDC
- Lowoutput ripple & noise
- Short circuit protection (self-recovery)
- Remote On/Off
- High power density
- EN60950 approval
Specifications :-
DC-DC Converters
I/p Voltage range:9-18V
Nominal voltage:12V
O/p voltage:5V
O/p current:600/30mA
wattage:3W
Isolation:1.5kvdc
Package: SIP
Package Includes:
1 x WRB1205S-3WR2 Mornsun 12V to 5V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package
Download DATASHEET :
Download
| |
| Brand/Manufacturer |
Mornsun |
| Country Of Origin |
China |
| Packer / Importer Address |
Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP |
Rs. 801.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

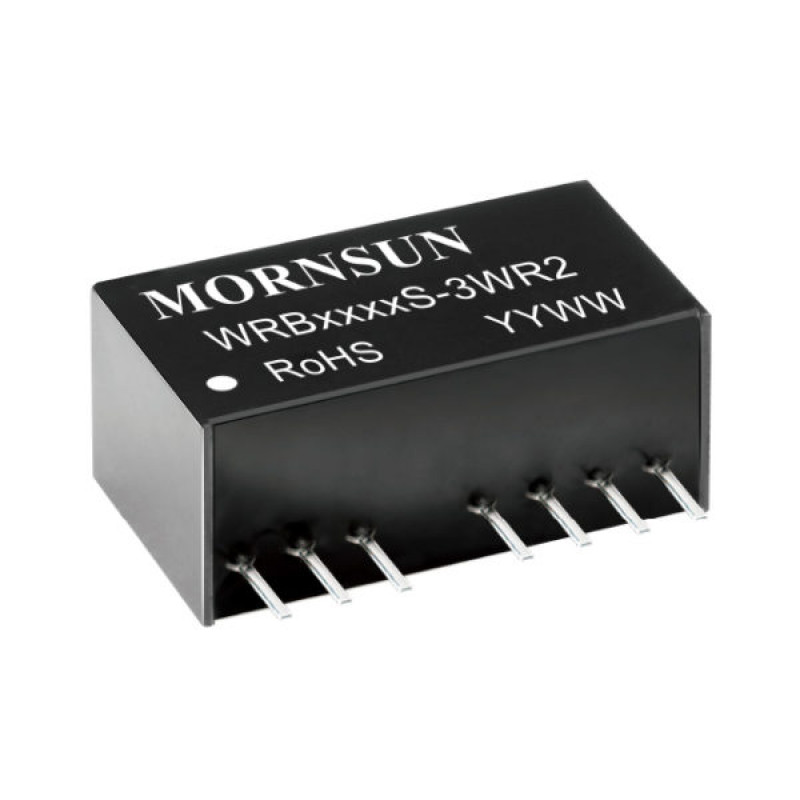

WRB1205S-3WR2 Mornsun 12V to 5V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package
- Product Code: EC-9498
- Availability: Out Of Stock
-
Rs.679.00
- (Excluding 18% GST)
