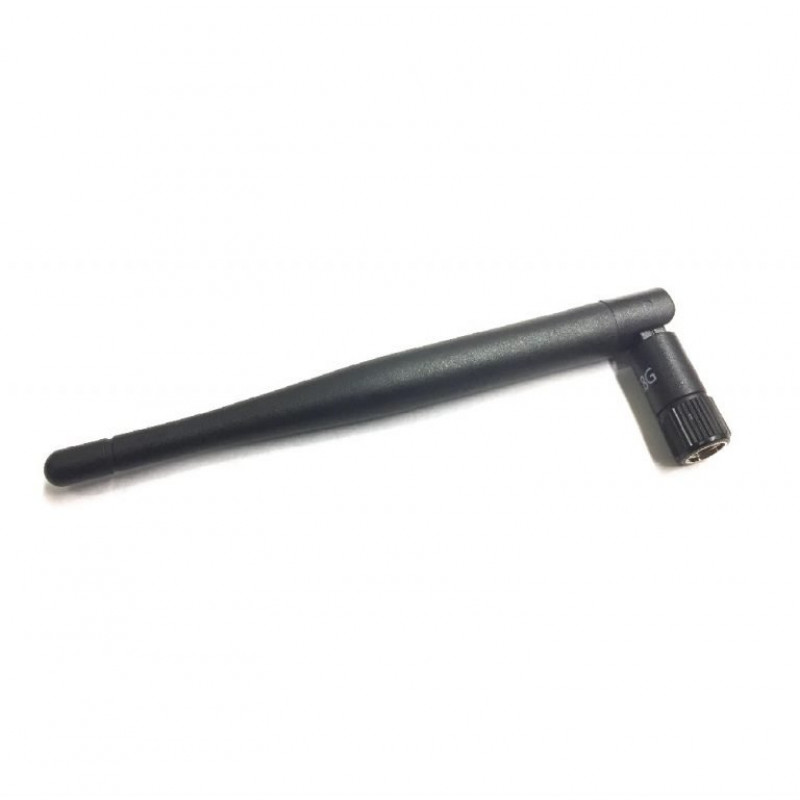

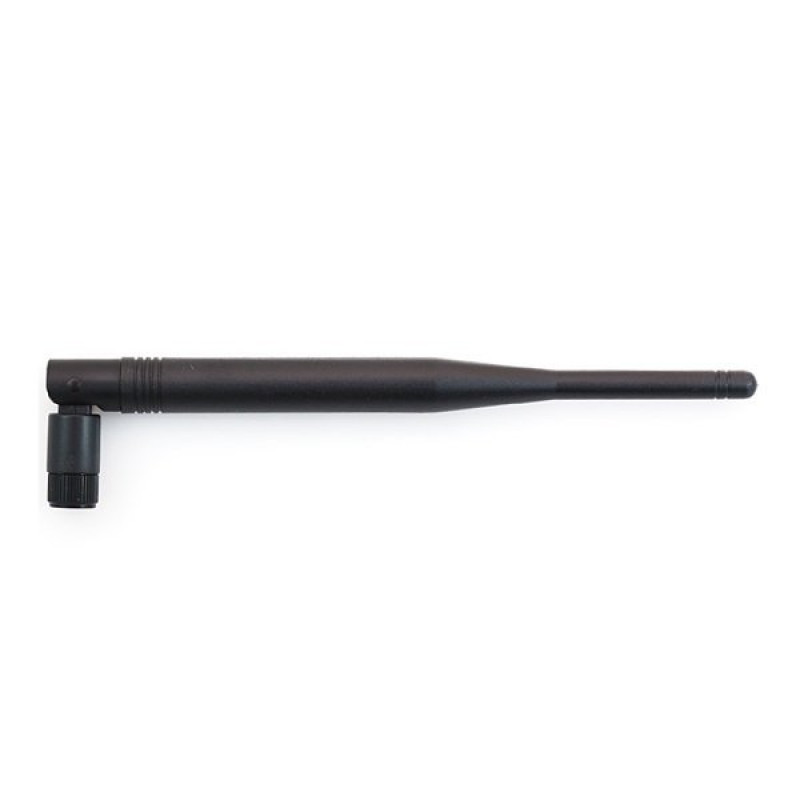

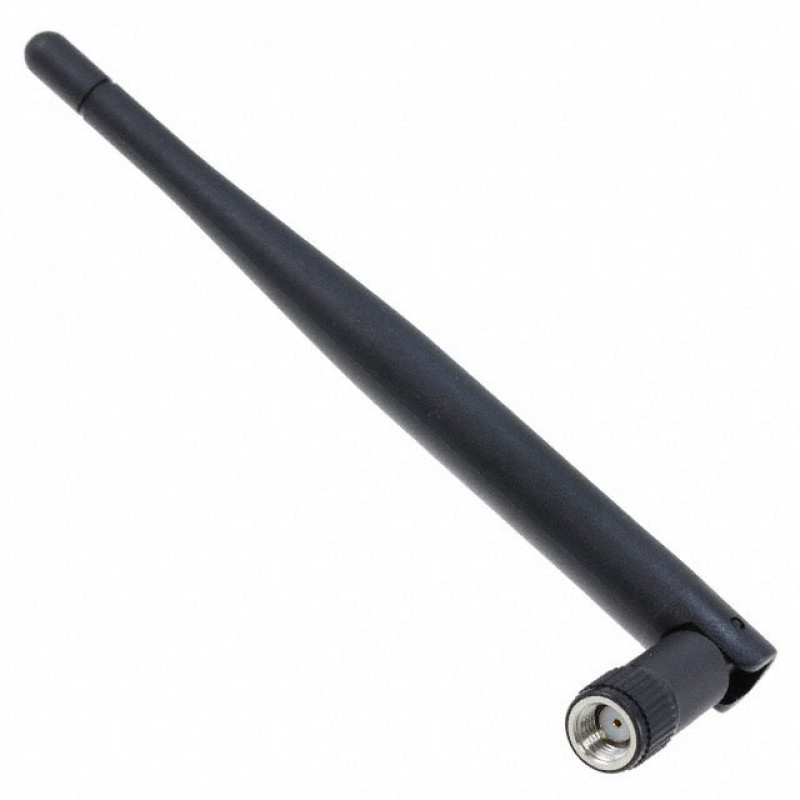

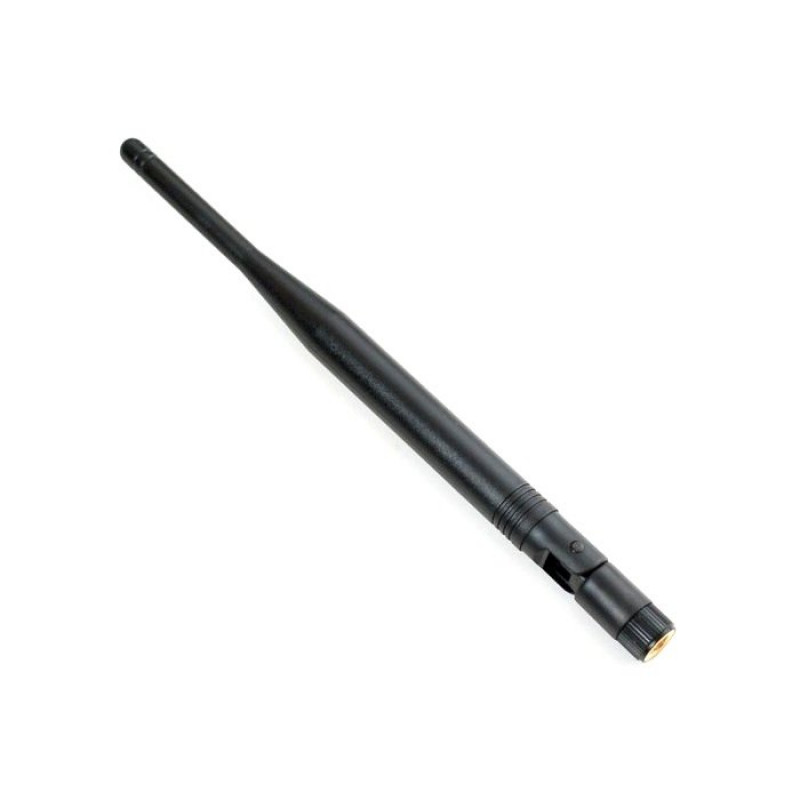

This 2.4GHz 3.2dBi RP-SMA Male Omni antenna is intended for use for all 2.4GHz applications. The antenna is fitted with an RP-SMA male connector and a blade, made of a flexible material that can be rotated 360 degrees. Suitable for telemetry and WIFI transmissions on lightweight unmanned platforms.
This 2.4GHz 3.2dBi Gain indoor antenna provides high gain and provides tilt and swivel functions for full flexibility. It is fully compatible with Zigbee XBee Pro S2C. This antenna can be used for a variety of other applications within the specified frequency range. When used as theaccess point, the antenna is ideally located at the center of the coverage area

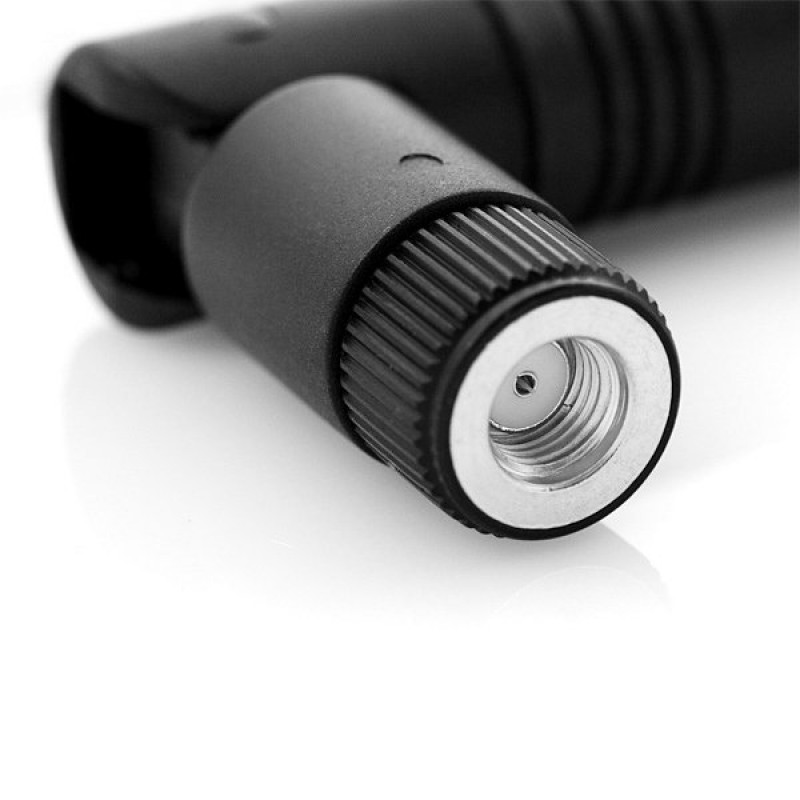

This antenna mates nicely with the SMA female connector.
Applications
- 802.11b/g/n Wi-Fi Networks.
- Zigbee.
- Bluetooth.
- Streaming Wireless Video.
- RFID.
- Public Hot Spots.
- Schools or Universities.
- Hotel Lobby and Hallways.
- Medical Buildings.
- Any Commerical Office, Retail Store.
Package Includes:
1 x 2.4GHz 3.2dBi RP-SMA Male Omni Antenna for WiFi.
Specifications :-
Frequency (Center/Band) | 2.4GHz |
Frequency Range | 2.4GHz ~ 2.5GHz |
Antenna Type | Whip, Tilt |
Number of Bands | 1 |
Antenna Connector | RP SMA Male |
VSWR | 1.9 |
Gain | 3.2dBi |
Applications | WLAN, Zigbee |
Body Material | Plastic and Rubber |
Color | Black |
Height (Max) | 19 cm. |
Weight(g) | 17 |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 194.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
2.4GHz 3.2dBi RP-SMA Male Omni Antenna for WiFi
- Product Code: EC-5269
- Availability: 137
-
Rs.99.00
- (Excluding 18% GST)
