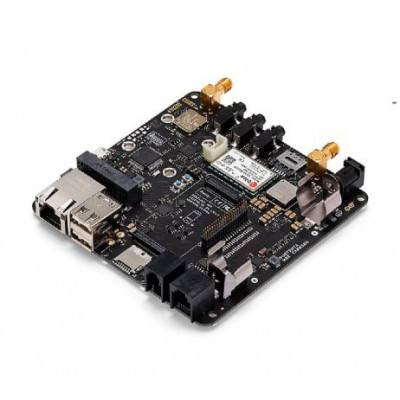

Enable edge AI for high-performance industrial, building automation, and robotics applications with the Portenta Max Carrier. The Portenta Max Carrier transforms the Arduino Portenta family into a standardized industrial platform, ready for use as a single-board computer or as a reference design. The Portenta Max Carrier provides easy access to the onboard peripherals of the Arduino Portenta X8(Not Included) including Gigabit Ethernet, microSD, and PCIe. This board further augments the capabilities of the Portenta X8 with Fieldbus, LoRa, 4G, Cat-M1, and NB-IoT connectivity providing a platform for Industry 4.0.

Note: Portenta X8 is not included in the product.

Key Benefits:

1. Easily prototype industrial applications and minimize time to market
2. A powerful carrier exposing Portenta peripherals (e.g. CAN, RS232/422/485, USB, mPCIe)
3. Multiple connectivity options (Ethernet, LoRa, CAT-M1, NB-IoT)
4. MicroSD for data logging operations
5. Integrated audio jacks (line-in, line-out, mic-in)
6. Standalone when battery-powered
7. Onboard JTAG debugger via micro-USB (with Portenta H7 only)

Features:

1. High-density connectors compatible with the Portenta family
2. Memory
   Flash memory (2Mb QSPI)
   Micro SD Card slot
3. Power/Battery
   Power Jack for external supply (6-36V)
   On-board 18650 Li-ion battery connector with battery charger (3.7V)
4. Wireless modules
   Murata CMWX1ZZABZ-078 LoRa module, SMA connector for antenna
   SARA-R412M-02B (4G/Cat-M1/NBIoT), micro SIM, SMA connector for antenna
5. Connectors
   2x USB-A female connectors
   1x Gigabit Ethernet connector (RJ45)
   1x FD-Can on RJ11
   1x mini PCIe
   1x Serial RS232/422/485 on RJ12
6. Audio
   3x audio jacks: stereo line in, mic in, HP line out
   1x speaker connector
7. Debugging
   On board JLink OB / Blackmagic probe

Package Includes:

1 x Official Arduino Portenta Max Carrier
