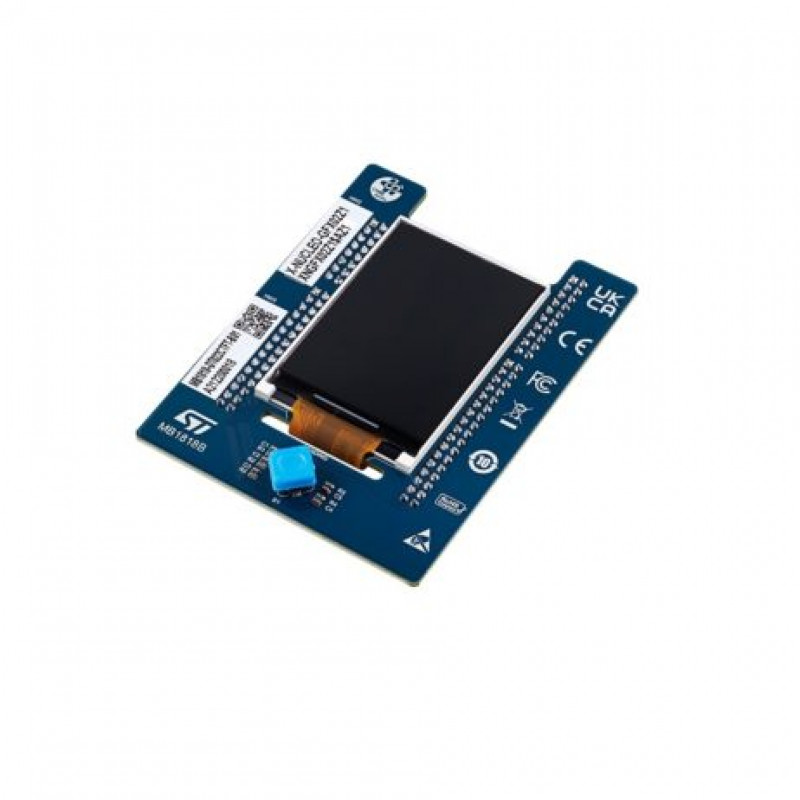

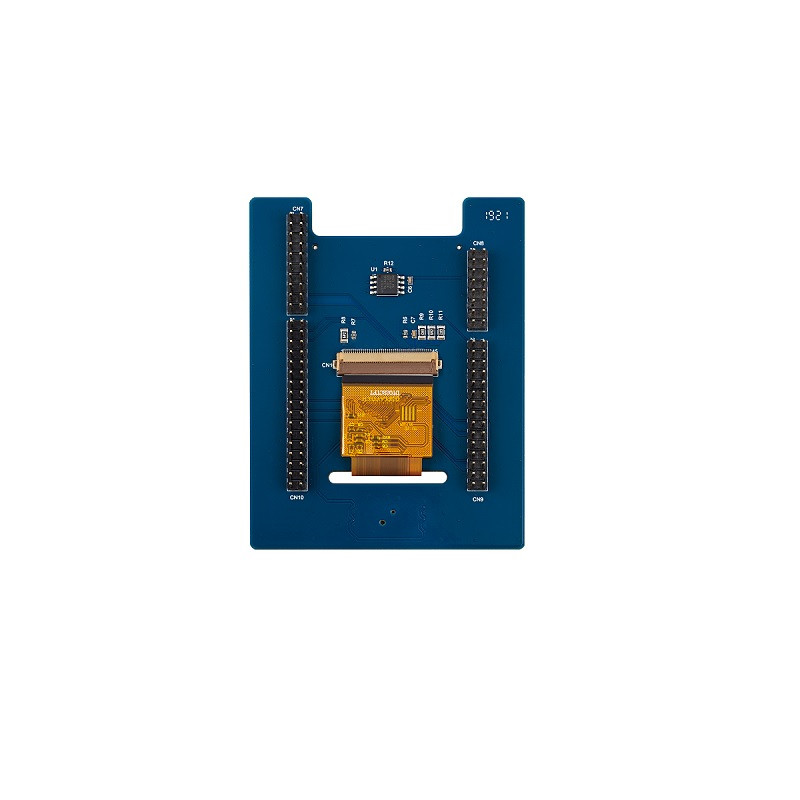

Display expansion board for STM32 Nucleo with Zio connector. Expansion board adds graphic user interface (GUI) capability to STM32 Nucleo-144 boards. It features a 2.2 8bit parallel interface TFT display as well as a 64Mbit Q-SPI NOR flash memory for storing graphic images, texts and texture. The expansion board also offers a joystick for GUI navigation. It is compatible with the NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H743ZI, NUCLEO-H723ZG, NUCLEO-H753ZI, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4A6ZG, NUCLEO-L4P5ZG, NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P, NUCLEO-L552ZE-Q and NUCLEO-U575ZI-Q Nucleo-144 boards.
Note: For more technical details go through Datasheet in the attachment section
Features & Specifications:
- 2.2 8-bit parallel interface QVGA TFT LCD
- 64-Mbit Q-SPI NOR Flash memory
- Joystick for easy menu navigation
- Compatible with selected STM32 Nucleo-144 boards using the Zio connector
Package Includes:
1 x STMICROELECTRONICS Expansion Board, Display, STM32 Nucleo-144 Boards
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, Display, STM32 Nucleo-144 Boards
- Product Code: EC-22104
- Availability: 14
-
Rs.3387.00
- (Excluding 18% GST)
